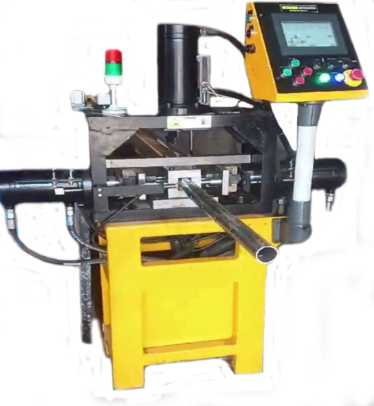

3 Cylinder Punching Machine
Special Purpose Machines (SPM'S)The 3 Cylinder Punching Machine by TL Pathak Group is a robust industrial machine designed for high-precision punching applications. Equipped with three synchronized hydraulic cylinders, it ensures efficient and uniform force distribution during the punching process. This machine is ideal for heavy-duty tasks such as punching holes in metal sheets, plates, and other materials. With its sturdy frame and reliable construction, it offers stability and longevity, reducing maintenance costs and downtime. The user-friendly control panel allows for precise adjustments, ensuring consistent results across various punching operations. Additionally, it comes with customizable die sets, making it adaptable for different hole sizes and shapes. This machine is widely used in industries like construction, metal fabrication, and manufacturing, where speed, accuracy, and durability are essential. The TL Pathak Group's reputation for quality engineering further enhances the reliability and performance of this punching machine.
Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | TLPCPM |
| Max. Pipe Length | 3000 mm (upto 12 mtr. on request) |
| Max. Punching Speed | 5 Seconds/Hole (will varry according to the profile) |
| Max. Pipe Size | 80x80 and 5 mm Thickness MS (can be Modified according to requirement) |
| Material and Shape | MS, SS, Aluminium, Copper (Square, Rectangle, Oblong, Round and Oval) |
| Press Height Control | Automatic With Proximity Switches (Auto Height Control) |
| Accuracy | Linear Positioning Accuracy +- <0.5 mm Linear Repeat Precision +- 0.25 mm |
| Machine Bed Structure | Material (MS HR), Metal Weight (950 kgs/Mtr.), Fabricated from 100x50x5 mm Box Structure (Stress Relieved and Machined) |
| Power Requirement for CNC Machine | 220 V 2.5 K.W. (Single Phase) |
| Power Requirement for Hydraulic Machine | 415 V (3 Phase) 7.5 H.P.(depends on model) |
| Material Clamping | Pneumatic Toggle Clamp -500 Kgs (Adjustable) |
| Electric Components | Schindler and Siemens Brand CAM Software : Inbuild in PLC (PC Software) |
