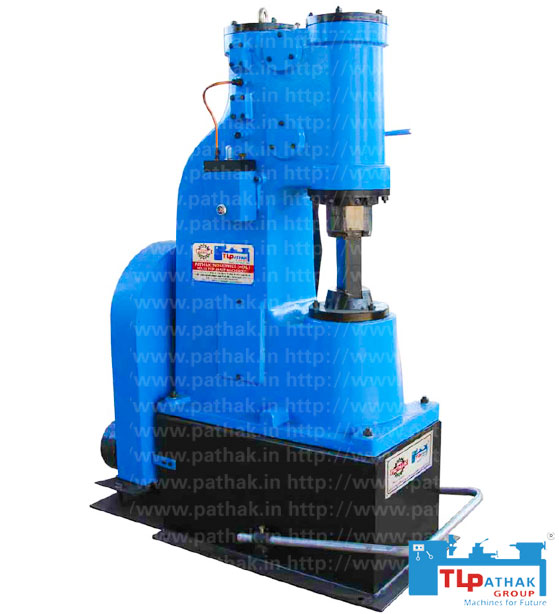

Blacksmith Power Hammer 25-KG
Press MachinesOur team designs the best quality blacksmith power hammer 25 kg with high-speed continuous strokes and is suitable for titanium and other unique alloy material free forgings; It also provides a high-temperature resistance and a multi-function gripping mechanism. It is made with premium quality raw material under the supervision of our team.
From ₹
260,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackDrawing Dies
Drawing Flat Dies
Fullering Dies
Fullering Falt Fies
Crown Dies
Heavy Fullering Dies
MODEL | PAH-15L | PAH-25L | PAH-40L | PAH-55L | PAH-75L | PAH-110L |
Weight of falling parts(kg) | 15 | 25 | 40 | 55 | 75 | 110 |
Hitting energy (kj) | 0.16 | 0.27 | 0.53 | 0.7 | 1 | 1.98 |
Hitting frequency (min-1) | 300 | 250 | 245 | 230 | 210 | 180 |
Height of working area (mm) | 160 | 240 | 245 | 270 | 297 | 355 |
D-Depth of throat(mm) | 170 | 235 | 270 | 300 | 330 | 400 |
Working Piece | 30 x 30 (Square) | 40 x 40 (Square) | 52 x 52 (Square) | 60x60 (Square) | 65x65 (Square) | 110x110 (Square) |
035 (Round mm) | 048 (Round mm | 068 (Round mm | 075 (Round mm | 085 (Round mm | 0120 (Round mm | |
Power (kw) | 2.2 | 3 | 4 | 5.5 | 7.5 | 15 |
Weight (Include Base) | 540 | 1100 | 1390 | 1700 | 2640 | 3300 |
