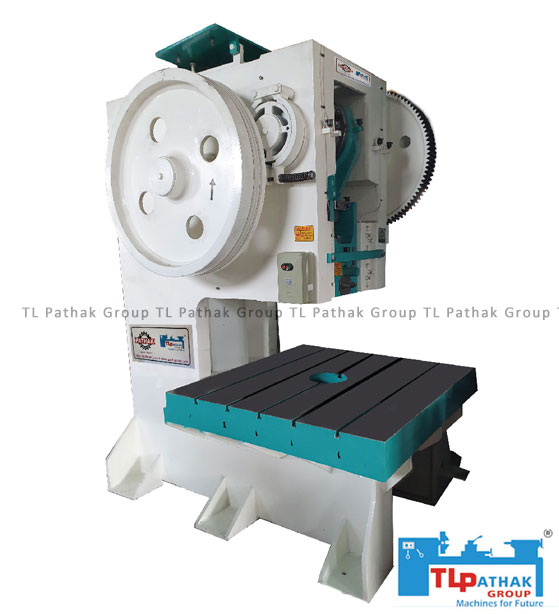

C Type Power Press Machine 100 Ton

Pathak manufactures the best quality C type power press machines 100 ton made as per clients requirement made with prime quality material used for manufacturing which makes it highly durable. Machines are suitable for high production, efficiency and reliability. It's easy to maintain and use. This machine provides smooth functioning to our clients.

Frame : Made of Mild steel and Fabrication properly. Bearing surface are hand scrapped.
Crank Shaft : Made of special steel stock to withstand the effective load, properly machined, fitted in bushes with high accuracy/
Ram Slide : Made of Cast Iron with high grade quality, properly seasoned after rough machining. Bearing surfaces are hand scrapped, with reamed hole for die clamping
Fly Wheel : Made of high grade cast Iron and is designed to generated the equipment energy.
Brake : The Brake is powerful  and work on the top dead enter and compensated by springs.
Stroke : Presses are manufactured with adjustable stroke and adjustments can be made by means of a worm.
Clutch : The Clutch is very rigid, better supported and less liable to suffer damage under heavy operating conditions. The Clutch gives continuous stroke for mass production.
Rolling Key : The key is "double key rolling type" made out of special alloy steel of EN series.
Lubrication : An efficient lubrication system can be provided to lubricate the sliding surfaces and moving parts at extra cost.
Ejector & Double Key System : These can be provided specially for he use of springs dies agint extra cost.
