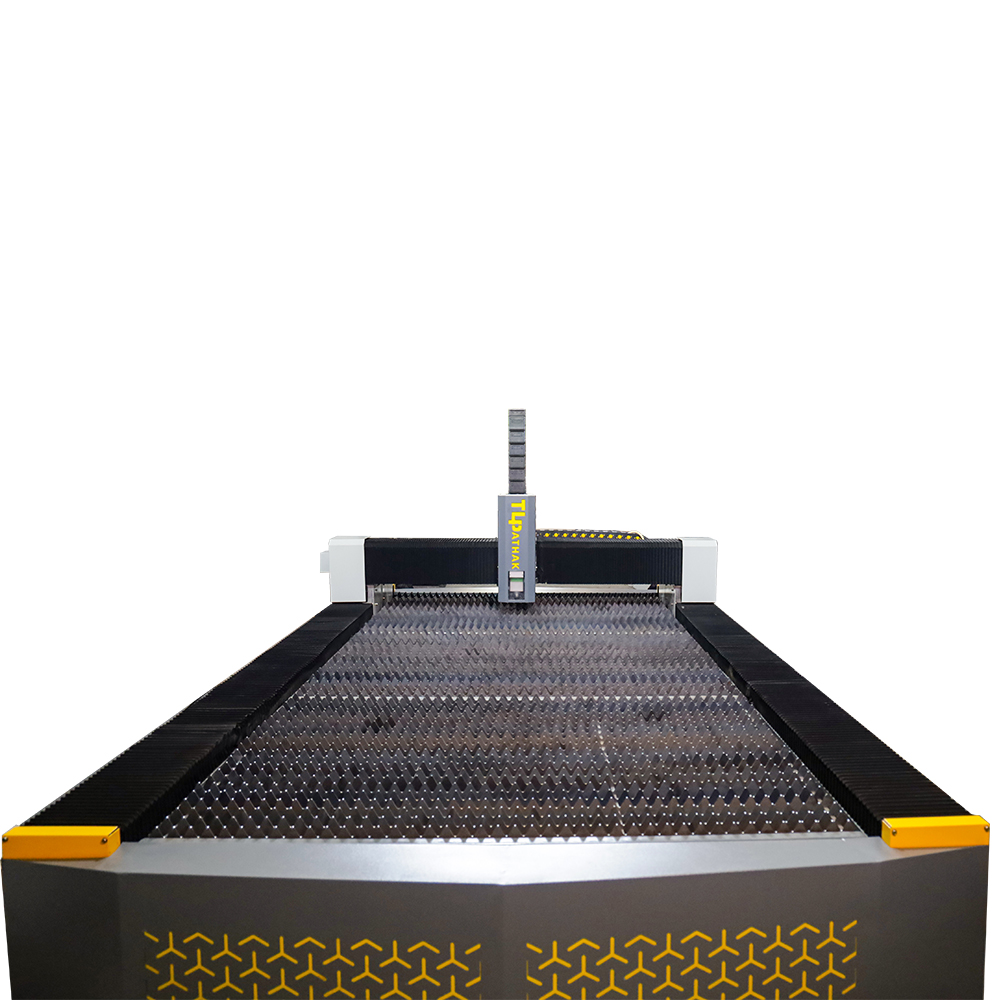

CNC Fiber Laser Cutting Machine - NT Series
CNC MachinesThe NT Series CNC Fiber Laser Cutting Machine by T.L. Pathak Group is a high-precision cutting tool designed for industrial applications. This advanced machine utilizes state-of-the-art fiber laser technology, offering exceptional speed and accuracy in cutting various materials, including stainless steel, carbon steel, aluminum, brass, and copper. The NT Series is equipped with a robust CNC system that ensures precise control and repeatability, enhancing productivity and reducing material waste. Key features include a user-friendly interface, efficient power consumption, and low maintenance requirements. Its durable construction and reliable performance make it ideal for demanding environments, ensuring consistent, high-quality cuts with minimal downtime. The NT Series is suitable for a wide range of industries, including automotive, aerospace, and metal fabrication, delivering superior results and optimizing operational efficiency.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | TLPFLC-1 | TLPFLC-2 |
| Laser Power | Max Brand | Max Brand |
| Laser Head | BM 111 Auto Focus | BM 111 Auto Focus |
| Cutting Software | Raytool (Swiss) | Raytool (Swiss) |
| Machine X-Axis Beam | Cast Aluminum | Cast Aluminum |
| Remote | Standard | Standard |
| Computer | Industrial Computer | Industrial Computer |
| Display | Standard Model | Standard Model |
| Motor & Driver | Lead Motion | Lead Motion |
| Linear guide | T-win (Taiwan) | T-win (Taiwan) |
| Water Chiller | S & A / Hanli | S & A / Hanli |
| Proportional Valve | SMC (Pneumatic System) | SMC (Pneumatic System) |
| Material | MS,SS,AI | MS,SS,AI |
| Thickness in mm | MS-12mm,SS-5mm,AI-1mm | MS-14mm,SS-7mm,AI-3mm |
| Pellet Changer Payload 600 kg | Change time 5-15 sec (in Auto Mode) | Change time 5-15 sec (in Auto Mode) |
| Working Area (Length x Width) | 3000 mm x 1500 mm | 3000 mm x 1500 mm |
| X-Axis Travel | 1500 mm | 1500 mm |
| Y-Axis Travel | 3000 mm | 3000 mm |
| Z-Axis Travel | 230 mm | 230 mm |
| X,Y Axis Positioning Accuracy | 0.05mm/m | 0.05mm/m |
| X,Y Axis Repeat Positioning Accuracy | 0.05mm | 0.05mm |
| X,Y Axis Maximum Acceleration | 1.0 G | 1.0 G |
| X,Y Axis Maximum Acceleration | 1.0 G | 1.0 G |
| Input Voltage-(AC Supply) | AC 230V | AC 230V |
| Machine Space Requirement (LW) | 6250mm x 5750mm | 6250mm x 5750mm |
| Machine Weight | 2700 Kg | 2700 Kg |
