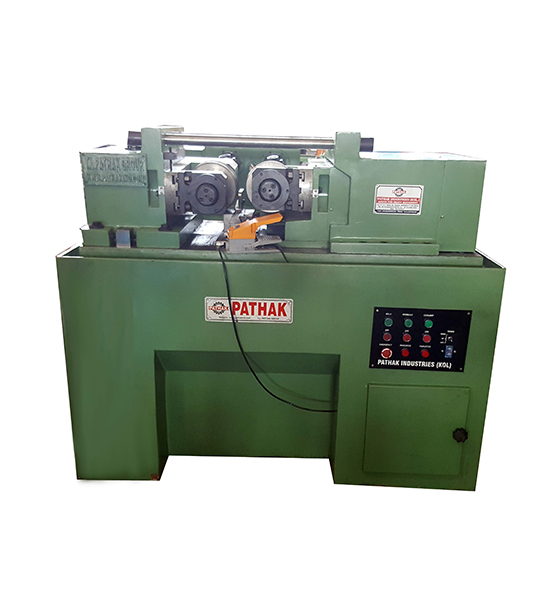

Hydraulic 2 Roll Thread Rolling Machine
Scaffolding MachinesThe Hydraulic 2 Roll Thread Rolling Machine by T.L. Pathak Group is a precision-engineered device designed for efficient thread rolling on various materials, including steel, aluminum, and brass. This advanced machine employs hydraulic power for smooth and consistent operations, ensuring high-quality thread formation with exceptional accuracy. Featuring robust construction, the machine is built to withstand rigorous industrial use while maintaining low maintenance requirements.
The two-roll configuration enables the production of precise and uniform threads by exerting symmetrical pressure on the workpiece, enhancing durability and strength. It is equipped with a user-friendly control system that allows for easy adjustments and monitoring, ensuring optimal performance and minimal downtime. The machine supports a wide range of thread sizes and pitches, making it versatile for diverse applications in automotive, aerospace, and manufacturing industries. Additionally, the T.L. Pathak Group's commitment to innovation and quality ensures that this thread rolling machine delivers reliable and efficient performance, meeting the demands of modern production environments.
Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| TWO ROLL TYPE | RTD - 25 | RTD - 40 | RTD - 50 | RTD - 80 | RTD - 100 | RTD - 120 |
| Max.Pitch Can Be Rolled (In Mm) | 2.5 | 3.5 | 4 | 5 | 5.5 | |
| Max.Dia Can Be Rolled in Feed (In Mm) | 25 | 40 | 50 | 80 | 100 | 120 |
| Max.Dia Can Be Through Feed (In Mm) | 18 | 28 | 35 | 40 | 50 | 70 |
| Max. Rolling Length In Feed (In Mm) | 80 | 100 | 150 | 150 | 150 | 150 |
| Max.Rolling Length Through Feed | indefinite | indefinite | indefinite | indefinite | indefinite | indefinite |
| Max.Outer Dia Thread Rolls (In Mm) | 120 | 180 | 180 | 180 | 200 | 220 |
| Spindle Dia (Bore Dia) (In Mm) | 40 | 54 | 54 | 69.85 | 76.20 | 76.20 |
| Max.Width Thread Rolls (In Mm) | 80 | 100 | 140 | 150 | 150 | 150 |
| Max.Rolling Force | 8 Tons | 12Tons | 15Tons | 24Tons | 30Tons | 40Tons |
| Power For Roll Spindles | 3 H.P. 1440 RPM | 5 H.P. 1440 RPM | 7.5 H.P. 1440 RPM | 10 H.P. 1440 RPM | 12.5 H.P. 1440 RPM | 20 H.P. 1440 RPM |
| Power For Hydraulic Pump | 2 H.P./3H.P. 960/1440 RPM | 2 H.P./3H.P.960/1440 RPM | 5 H.P. 960/1440 RPM | 5 H.P./7.5H.P 960/1440 RPM | 5 H.P./7.5H.P 960/1440 RPM | 7.5 H.P.960/1440 RPM |
Threading Machine Application Image 1
Threading Machine Application Image 2
Threading Machine Application Image 3
