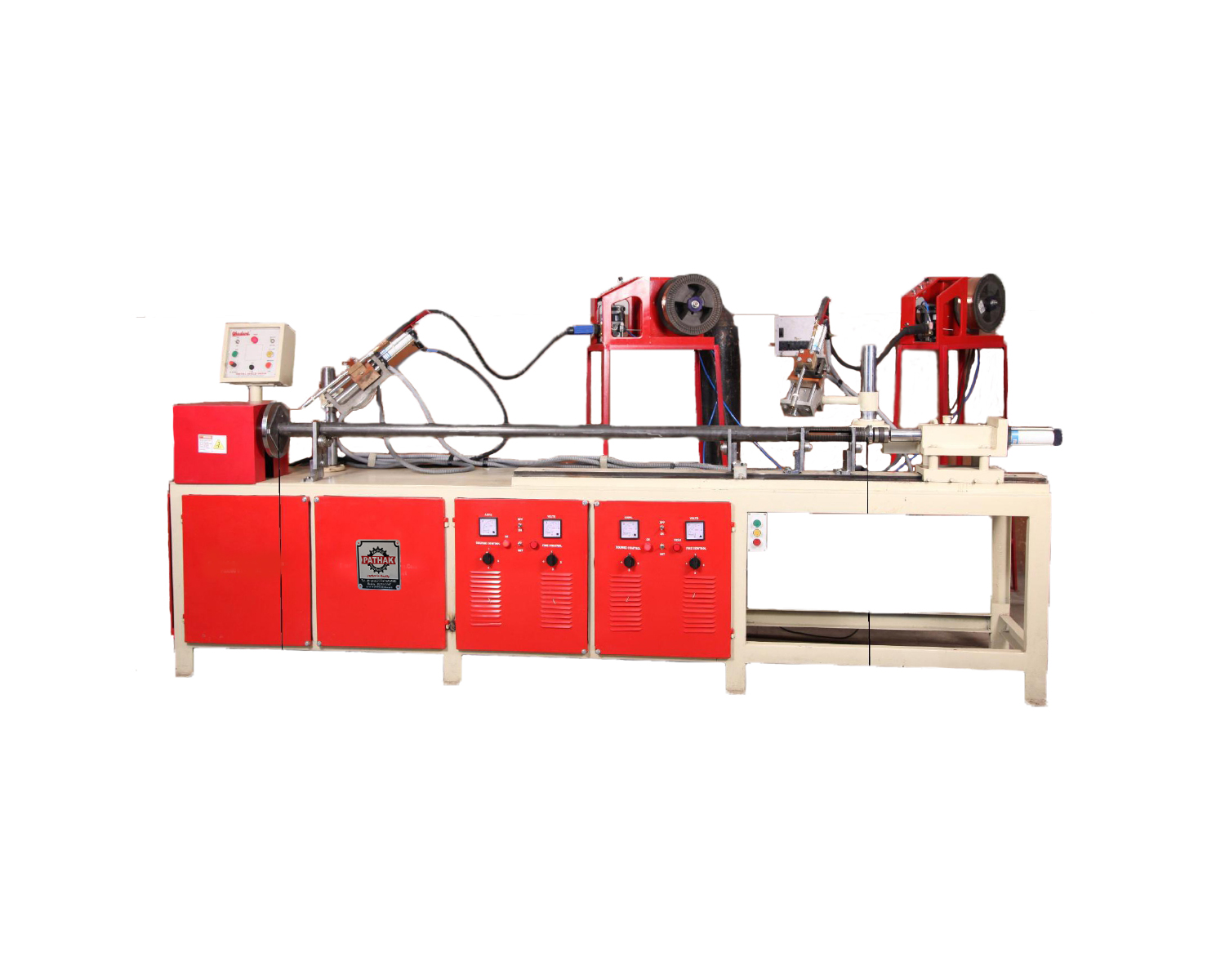

Prop Jack Welding Machines

This system is based on Circular welding on Both Base Plate with Pipe and then Pipe with threaded sleeve from both positions as From Top side or Inside of sleeve for Fastest production and Uniform Welding and it helps operator be safe from burning skin of continuous welding process, By using this machine one can save the Consumption of CO2 Gas and proper welding thickness as per standard required and the production out comes will help them to be competitive in market by Fastest supply, clean and safe process of welding.  This Unit is based on 380-415 Volts 50 -60 Hz. Ac as input Supply and Controlled with DELTA make PLC system and Motor Drive, Clamping of Job and de- Clamping is Pneumatically operated for movement of Welding torches. Adjustments of Length from 300mm to 3000mm. with wheel drive.  System Comes with Two welding Mig Machines 400 Amps DIODE BASE and Wire feeding Units which makes this machine more reliable and it is capable to save the cost of aligning the sleeve or base plate, the same machines starts welding on both side of Telescopic prop as on Base plate + Pipe and Pipe + threaded sleeve together at the same time, This option makes this machine perfect value of money spent of it.  This System has All machines are installed inside the Welding station and Panel buttons are in front of it, this makes it user friendly, Operator can adjust the welding speed and current from one place without any hustle and operator can start and stop machine instantly to avoid damage of welding job. Estimated Welding Duration of 35 Seconds with minimum 6mm Welding layers..
