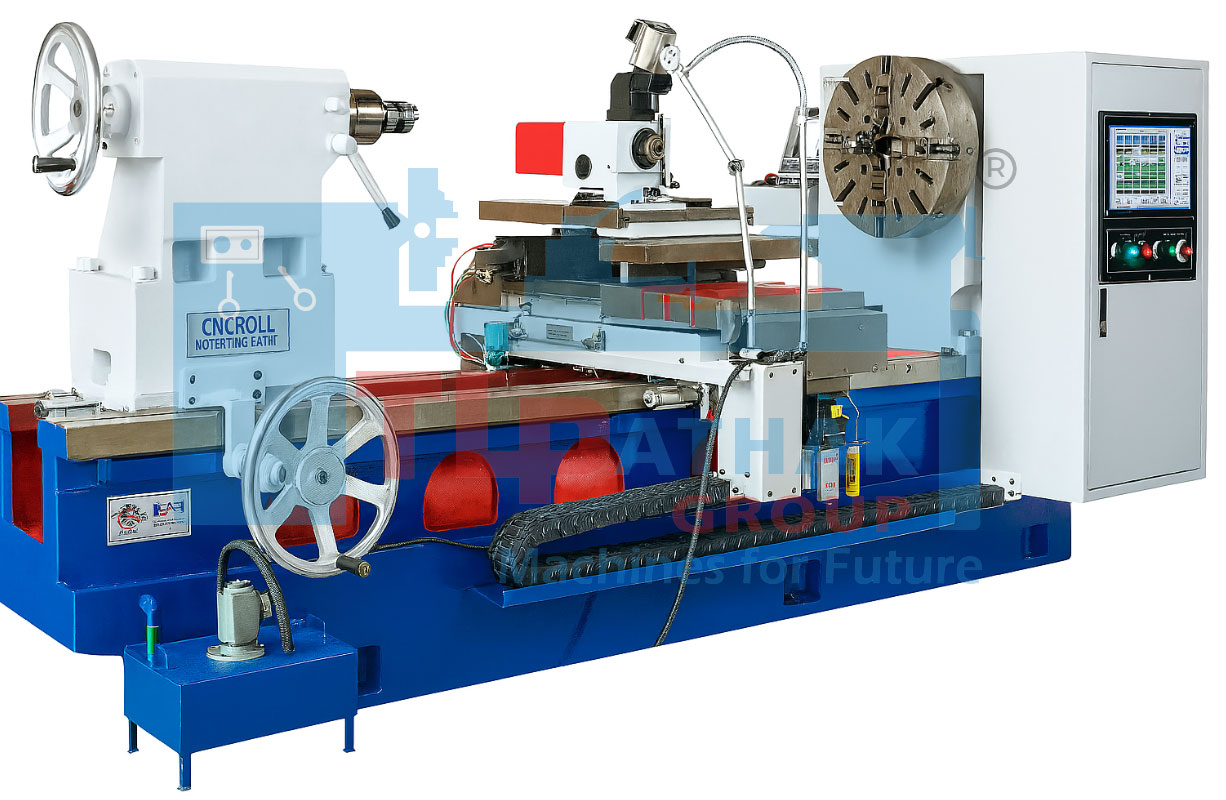

Cnc Roll Notching Lathe Machine
Lathe MachinesDownload Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Specifications | Model : PRGE-1 |
| Max. Diameter of Processed Roller | 22 mm |
| Max. Length of Processed Roll | 22 mm |
| Nothing for Re-Bar Diameter | 18 mm |
| Notching Per Rolls | 40 mm |
| Omitting Ribs | 40 mm |
| Min.Feed Rate | 2 Hp |
| Spindle Speed of Flying Cutter Head (Notching) | 1440 Rpm |
| Spindle Speed of Flying Cutter Head (Notching) | 22 mm |
| Head Stock Spindle Bore | 22 mm |
| Head Stock Chuck diameter (4 Jaw chuck Diameter) | 18 mm |
| CNC 4-Axis Control System | 40 mm |
| Motors & Drives | 40 mm |
| Overall Dimension (L x W x H) (Approx) | 2 Hp |
| Machine Weight (Approx) | 1440 Rpm |
We are a market leader that is specialized in CNC machines for roll turning, notching, and branding that is used in the manufacturing of steel rebars. We ensure high accuracy as our CNC machines can notch ribs for the deformed steel bar with all standards and can also make logo characters, drawings, etc. on the surface of the roll.
Function 1 : Notch (Base Function)
Cnc machine can notch ribs for the deformed steel bar with all standard. The cnc machine use 4 server motor.
X axis : notch tool feed forward or turn back
Y axis : the roll turning with warm gear
Z axis : notching tool turning on the lever surface with gear drive
A axis : the notch tool move from the left to the right
Function 2 : making (additional function)
CNC machine can make logo character, drawing etc. on the surface of the roll. Marking cutter feed forward or turn back, and move from left to the right.
X axis : notch tool feed forward or turn back
Y axis : the roll turning with warm gear
Z axis : the notch tool move from the left to the right
A axis : the marking cutter spindle turning with high speed, VFD
TL Pathak group's CNC notch milling machine, with its sophisticated software package and represents a complete notching and marking unit able to answer at the challenges of the new demanding re-bar market.
Time Taken For Operation
Notching on one groove can be done is about 15-20 minutes. Name marking on one groove can be done is about 10 minutes
Key Features
| CNC Controller: Programmable logic for multi-axis precision notching | ||
| Heavy-Duty Bed: Designed to handle large and heavy rolls | ||
| Automatic Tool Post: For high-speed tool changing | ||
| Hydraulic or Pneumatic Clamping: Secure holding of rolls during machining | ||
| High Torque Spindle: To handle deep cuts in hard materials
|

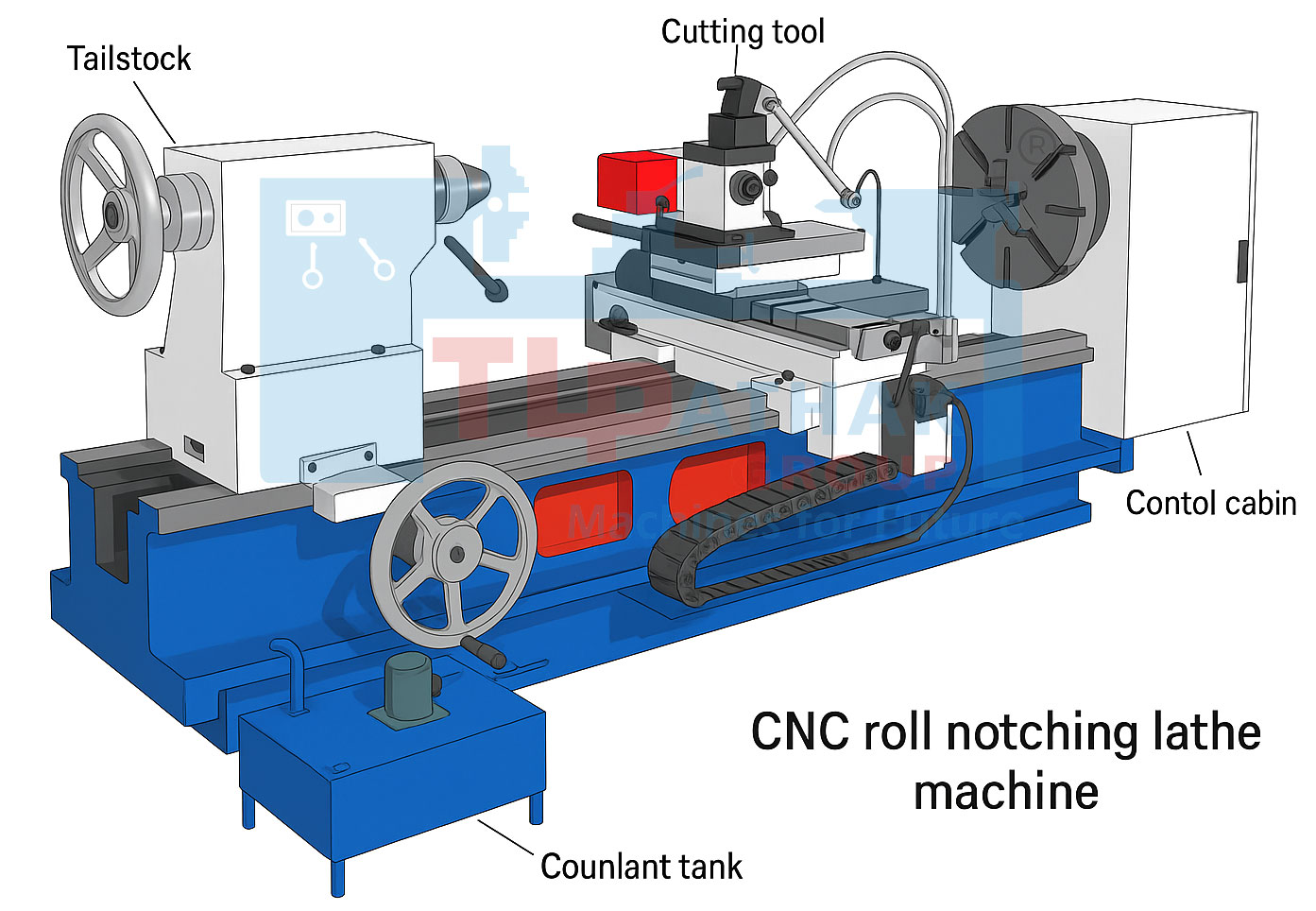

3D angled front view with all parts labeled for Cnc Roll Notching Lathe Machine
Applications of Cnc Roll Notching Lathe Machine
| Steel and aluminum rolling mills |
| Sugar mill roller manufacturing |
| Paper and printing industry rolls |
| Rubber and plastic roller production |
| Tube and pipe mill roll shops |
| Forging and metal forming industries |
| Wire rod and bar mill rolls |
| Railway wheel and axle workshops |
Uses of Cnc Roll Notching Lathe Machine
| Precision notching of rolls for better grip during metal forming |
| Creating custom notch profiles on work rolls and back-up rolls |
| Reconditioning and refurbishing worn-out rolls |
| Enhancing the traction of sugar mill rollers |
| Machining of grooves, threads, or patterns on cylindrical rolls |
| Increasing surface friction on rollers for industrial processes |
| Automated and consistent notching with high repeatability |
| Reducing manual labor and human error in roll manufacturing |
Steel & Paper Mills
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Rail Coaches
Wire Fence
Metal Fabrication Shops
Automotive Industry
Heavy Engineering
