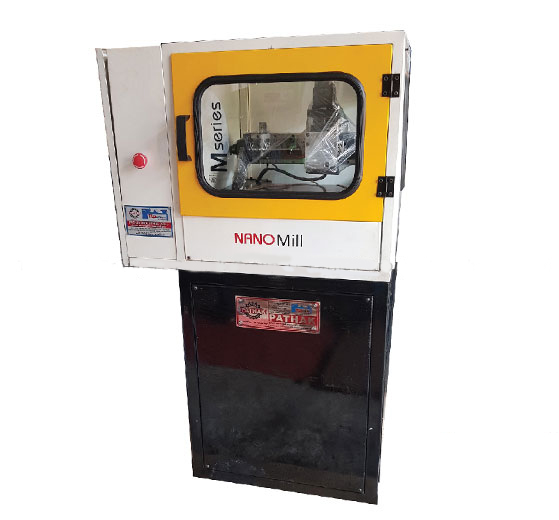

Cnc Pcb Router Drilling Machine
CNC MachinesAs one of the well known and renowned manufacturers and producers of the Computer numerical control PCB Router drilling machine in the market for the past few years, we provide our customer with the best quality of machines at an affordable price. The drilling machines are fully automated and do not require any manual operator and can dig a hole of minimum 0.15 to 6.5 mm.
From ₹
450,000
To
875,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
PARAMETERS |
DESCRIPTION |
| Ball | Pitch = 5mm (All 3 axes i.e. X Y Z) Dia = 16 mm |
| Machine Structure and material of Construction | Cast Steel. |
| Machine Slides (XYZ) | Precision Linear Guideways. |
| Axes Motor (XYZ) | Stepper Motor NEMA23, Microstepping, 19 kg-cm, 1.8deg, 2.8 Amp, bi phase motors. |
| Spindle Motor | 0.8 kw, 25000RPM, Air- Cooled, Runnout=20microns |
| Axes Motor Drive Electronics (XYZ) | Noiseless Microstepping drive . Operating Voltage = 24V DC |
| Home Position Sensors | Ultra precision proximity inductive sensors with repeatability of 0.01mm & response time of 0.1 secs. Type : PNB-NO.Operating Voltage : 24V DC |
| Min drill Hole Size | 0.3 mm |
| Min Cutting Space | 0.1 mm |
| XYZ Resolution | 0.006 mm |
| Files Compatiable | Gerber, Excellon generated from any PCB CAD Software |
| CAM Software | Built -in CAM software to genarate files for isolation routing and drilling |
| PC Connectivity | USB Connectivity |
| Graphical User Interface Software for machine Control & Manufacturing | Provided |
| Operating System requirements | Window 7 64 bit or 32 - bit or Linux (Unbuntu) |
| Supports G Codes | Provided |
| Operations Supported | Engraving, Drilling, Milling Trimming, Profilling,Routing, Pocketting,isolation Routing etc. |
| Accessories | Brush, Allen key set, Adhesive tape, copper clad board, Nose piler, Power cord, USB cable, Tool set(Drill bits, Routr bits,Engraving bits) |
| Multi-Purpose Heavy Duty Desktop CNC machine. | Application involve PCB prototyping, Enclosure prototyping etc. |
| Warpage Compensation or Automatic Tool Height Control System | The Said workpiece is scanned from top for surface non-uniformities and flatness of copper clad board.For precison engraving, height is an extremely critical and important parameter to be cotrolled As per the scanned topography,the height of the tool is automatically compensated in run-Time. This gives precision engraving perfomance. |
| Power Requirement | Single phase AC 230V,50Hz. |
| Machine dimensions | 500 x 400 x 300 (L mm x B mm x Z mm). |
| Working Area | 300 x 250 x 60 (X mm x Y mm x Z mm). |
| Toolset | Engraving V-bits 60deg/30 deg/45 deg. End-mills,Drills |
| Warranty | 1 Year |
| Weight | 90 kg |
| Maximum PCB Layers | Dual layer |
| Engraving Parameters | 0.2 mm |
CNC PCB Router Application Image 1
CNC PCB Router Application Image 2
CNC PCB Router Application Image 3
