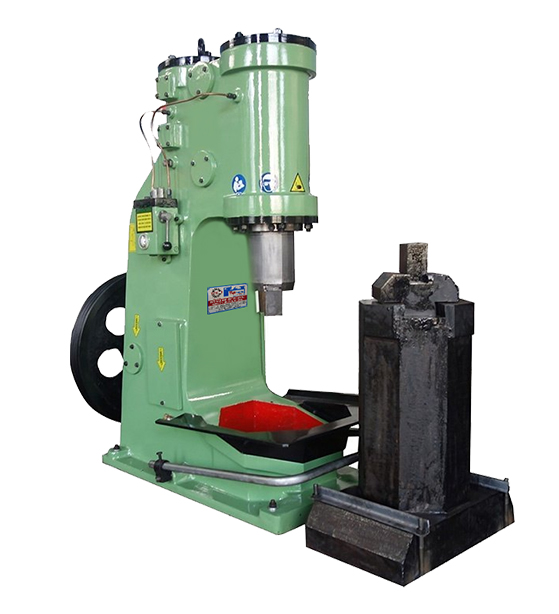

25 Kg Air Hammer Machine
Press MachinesThe 25 kg Air Hammer Machine by TL Pathak Group is a robust and efficient tool designed for heavy-duty forging applications. Engineered with precision, this air hammer delivers powerful and consistent blows, making it ideal for shaping, cutting, and bending metal. The machine features a solid cast iron body that ensures durability and stability during operation. It is equipped with a high-performance air compressor that provides reliable and adjustable air pressure, allowing for precise control over hammering force. The ergonomic design includes a user-friendly interface and safety mechanisms to protect the operator. Additionally, the 25 kg Air Hammer Machine boasts low maintenance requirements and is designed for easy installation and operation in industrial settings. With its superior performance and build quality, this air hammer is a valuable asset for blacksmiths, metalworkers, and industrial manufacturers seeking efficiency and reliability in their forging processes.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel | PAH-25 |
Weight of Falling Parts | 25 kg |
Max. Hit Energy | 0.27 KJ |
Height of Working Area | 240 mm |
Hit Number | 200 min |
Max. Square Steel Dia Can be forged | 40x40 mm |
Max. Round Steel Dia Can be forged | 45 mm |
Rate Power | 2.2 KW |
Voltage | 380 V or Customized |
Total Weights | 770 kg |
Overall Dimension (LxWxH) | 900x510x1200 mm |
