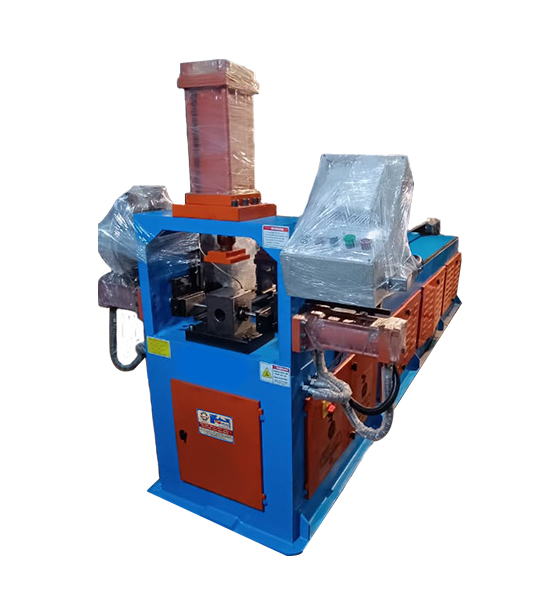

Automatic Slotted Angle Punching Machine
Special Purpose Machines (SPM'S)The Automatic Slotted Angle Punching Machine by TL Pathak Group is a versatile solution for efficiently punching slots in slotted angles. This machine streamlines the manufacturing process by automating the punching operation, enhancing productivity and precision. With its advanced technology, it offers consistent and accurate results, minimizing errors and reducing production time. The machine features a user-friendly interface, allowing for easy operation and customization of punching parameters. Its robust construction ensures durability and reliability, making it suitable for continuous industrial usage. Equipped with safety features, it prioritizes operator security while maintaining high efficiency. Designed to meet the demands of modern manufacturing, the Automatic Slotted Angle Punching Machine is an essential tool for industries requiring precise and efficient slot punching operations. Trust TL Pathak Group for innovative solutions driving productivity and quality in manufacturing processes.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel Name | TLPSAP |
Body | Mild Steel Fabricated |
Electric Control | with PLC Mitsubishi Make |
Accuracy | +-0.10 mm |
Hydraulic Valve | Yuken Brand |
Oil Pump | Hydraulic power pack build with double Pump |
Electric Motor | 7.5 H.P. Crompton Make |
Saving Program | 100 + |
Maximum Angle Length | 6500 mm |
Punching Capacity | 6x65x65 mm |
Hydraulic Tank | 150 lit. (Without Oil) |
Electric Panel | 2 Nos. |
Cycle Time | 3 sec per hole including feed |
Pipe Clamping | By Hydraulic Cylinder |
Gear Box | Servo Motor 1 K.W. Planetory Gear Box |
HMI | Touch Screen 7” Mitsubishi or Fuji Make |
