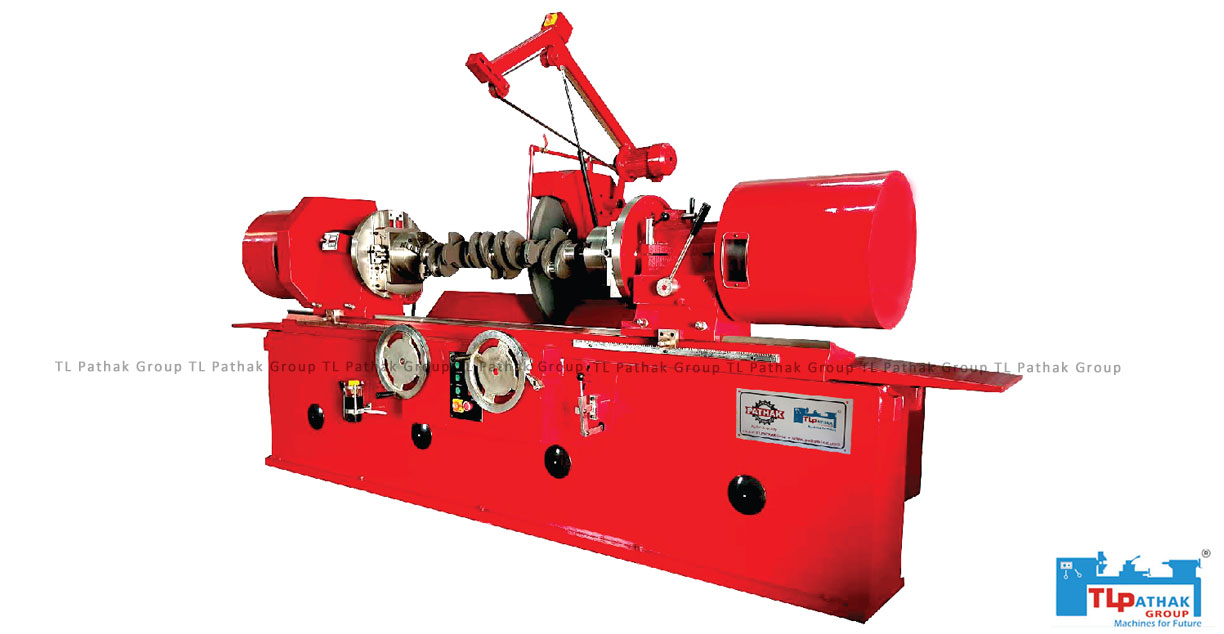

Crankshaft Grinding Machine
Garage MachinesWe are the largest manufacturer of best quality Crankshaft Grinding Machines mainly used for grinding journals and crankpins to remove material and through-feed grinding of the cylindrical surface of ring and shaft type parts. It's made with the latest technology made under the supervision of our professional technical team, allowing it to perform smooth functioning.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| MODEL | PCSG 850 | PCSG 1200 | PCSG 1500 |
| Height of Center From The Table | 180 MM | 250 MM | 265 MM |
| Maximum Head offset | 70 MM | 100 MM | 120 MM |
| Maximum Distance Between Chuck | 780 MM | 1150 MM | 1450 MM |
| Maximum Distance Between Centers | 850 MM | 1200 MM | 1500 MM |
| Diameter of Self Centering Chucks | 160 MM | 200 MM | 200 MM |
| Diameter of Grinding Wheel | 600 MM | 660 MM | 710 MM |
| Grinding Head Traverse with Hydroulic | 80 MM | 100 MM | 125 MM |
| Work Head Spindle Rotation Speed (Variable) | 20 - 110 RPM | 20 - 100 RPM | 20 - 90 RPM |
| Automatic Table Movement | .... | .... | Optional |
| Grinding Wheel Spindle Rotation | 1050 RPM | 960 RPM | 900 RPM |
| Grinding Wheel Motor | 2 HP / 1440 RPM | 5 HP / 1440 RPM | 5 HP / 1440 RPM |
| Work Head Motor | 0.25 HP 1440 RPM | O.5 HP 1440 RPM | 1 HP 1440 RPM |
| Coolant pump Motor | 0.13 HP / 2800 RPM | 0.13 HP / 2800 RPM | 0.13 HP / 2800 RPM |
| HYD.Power Motor (Grinding Wheel Slide) | 0.5 HP / 1440 RPM | 0.5 HP / 1440 RPM | 0.5 HP / 1440 RPM |
| Length of the Machine | 1850 MM | 2400 MM | 3060 MM |
| Width of the Machine | 1100 MM | 1250 MM | 1550 MM |
| Height of the Machine | 1500 MM | 1600 MM | 1600 MM |
| Net Weight | 1.5 TON | 2.2 TON | 3.1 TONS |
| Cross Weight | 2 TON | 2.9 TON | 3.8 TONS |
STANDARD ACCESSORIES |
PCSG 850 |
PCSG 1200 |
PCSG 1500 |
| Self Centering Chuck With Key | 2 NOS | 2NOS | 2NOS |
| Face And Side Dresser Assembly With Diamond Dresser | 1 NO | 1 NO | 1 NO |
| Study Rest | 1 NO | 1 NO | 1 NO |
| Crank Centering V Gauge | 1 NO | 1 NO | 1 NO |
| Radius Dresser | 1 NO | 1 NO | 1 NO |
| Wheel Hub | 1 NO | 2 NO | 2 NO |
| Grinding Wheel | 1 NO | 1 NO | 1 NO |
| Wheel Hub Puller | 1 NO | 1 NO | 1 NO |
| Dial 10 MM | 1 NO | 1 NO | 1 NO |
| Coolant System | 1 NO | 1 NO | 1 NO |
| Spindle Nut Tightening Spanner | 1 NO | 1 NO | 1 NO |
