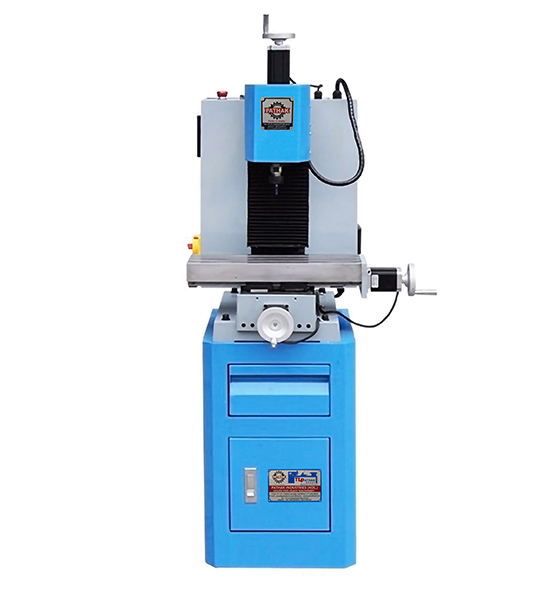

Cnc Trainer Milling Machine Trainer 400
CNC MachinesWe are a renowned manufacturer of CNC Training Milling Machine Trainer 400, also popularised as computer numerical control (CNC). It is automated surveillance of matching tools and a 3D printer of the proportions of a computer. With the usage of this machine, you will get the exact specifications with the programmed instructions, even in the absence of a physical operator.
From ₹
555,000
To
1,285,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
Allen Wrench

Handwheel

Screwdriver

Wrenches

Oil Gun

Tool Box
Max. drilling dia. | 13mm |
Max. milling dia. | 13mm |
Max. tapping dia. | --- |
Spindle speed | 3000 RPM |
Spemdle center to column distance | 189mm |
Spindle nose to table distance | 205mm |
Spinder taper | ER20 |
T-slot size | 12mm |
Worktable size | 400x140mm |
X axis travel | 220mm |
Y axis travel | 120mm |
Z axis travel | 200mm |
Main motor power | 400W |
Main motor power | Brushless motor 0-5V analog speed regulation |
Feeding motor torque N.m | 2.6/2.6/3.2 Nm |
Feeding motor type | Stepper motor with open loop |
Control system | Mach3 |
