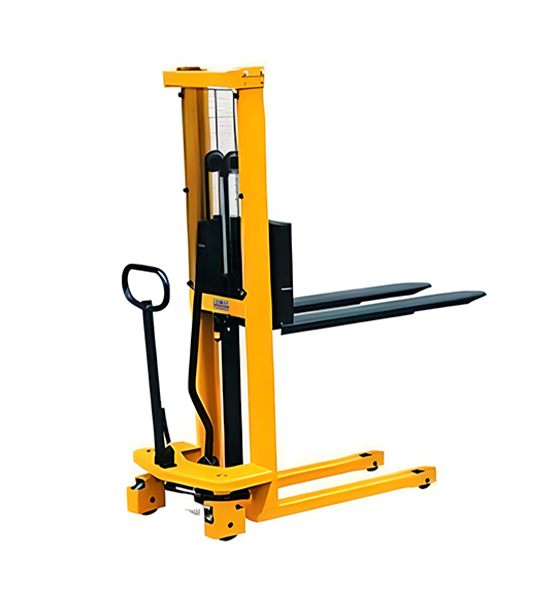

Manual Stacker
Material Handelling Machines
A manual stacker, also known as a manual forklift or hand stacker, is a versatile material handling device used to lift, transport, and stack loads in various industrial environments. It consists of a sturdy frame with forks at the front and a hydraulic lifting mechanism.
The operator operates the stacker manually by pumping a handle, which activates the hydraulic system to raise or lower the forks. The forks can be inserted beneath pallets or other loads to lift them off the ground. The stacker is equipped with wheels or casters, allowing for easy maneuverability and transportation of loads within a facility.
Manual stackers are often used in warehouses, distribution centers, and retail settings where smaller loads need to be lifted and moved. They provide a cost-effective solution for lifting and stacking tasks, offering versatility and efficiency in material handling operations. With their compact design and ease of use, manual stackers contribute to improved productivity and reduced physical strain for operators.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | TLPMS 500 | TLPMS 1000 | TLPMS 1500 |
| Capacity | 500 kg | 1000 kg | 1500 kg |
| Fork Length | 900 mm | 1150 mm | 1150 mm |
| Fork Width | 300-600 mm | 300-700 mm | 300-700 mm |
| Lifting Height | 1600 mm | 1600 mm | 1600 mm |
| Pumping Rod Diameter | 30 mm | 32 mm | 40 mm |
| Manual Pumping With Foot | Manual Pumping With Foot | Manual Pumping With Foot |
