Hydraulic Shearing Machine

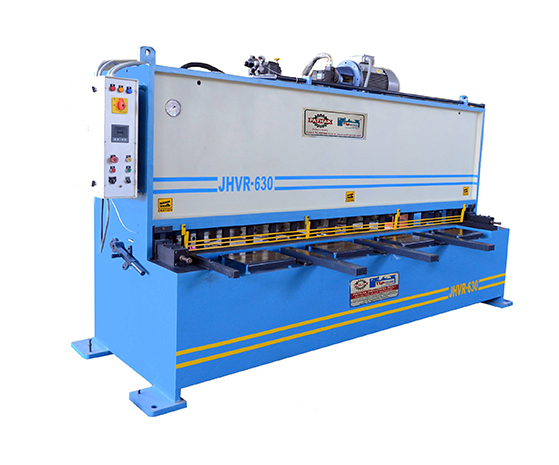

Sheet Metal MachinesThe Hydraulic Shearing Machine by T.L. Pathak Group is a high-performance industrial tool designed for precision cutting of metal sheets. Engineered for efficiency and durability, it features a robust hydraulic system that ensures smooth and powerful shearing operations. The machine is equipped with adjustable cutting angles and a rapid blade clearance adjustment mechanism, allowing for versatile and accurate cutting across various thicknesses. Safety is a priority with integrated safety guards and emergency stop functions. The ergonomic design includes a user-friendly control panel for easy operation. Suitable for heavy-duty applications, this shearing machine is ideal for use in manufacturing, automotive, and construction industries, offering reliable performance and long-term cost savings.
From ₹
1,250,000
To
3,875,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | Shearing Length mm | Min. Rake Angle | Maximum Rake Angle (M.S) | Rake Angle | Rake Angle Range | Strokes Minute at Min. & Max. Rake Angle | Holddowns | Holding Force kgs. | Power H.P | Over all Dimensions in mm (LxWxH) | Approx. weight kgs. |
| PHS325 | 2500 | 3.15/4 | 2/3 | 1"15" | 0.5-2" | 28-13 | 13 | 2500 | 5 | 3150x2000x2400 | 3800 |
| PHS330 | 3000 | 3.15/4 | 2/3 | 1"15" | 0.5-2" | 24-9 | 16 | 2500 | 5 | 3500x2000x2400 | 4400 |
| PHS412 | 1250 | 4/6 | 3/4 | 1'37" | 0.5-3" | 33-17 | 5 | 400 | 5 | 2000x2000x2400 | 2700 |
| PHS415 | 1500 | 4/6 | 3/4 | 1'37" | 0.5-3" | 30-15 | 8 | 4500 | 5 | 2250x2000x2400 | 3200 |
| PHS420 | 3000 | 4/6 | 3/4 | 1'37" | 0.5-3" | 28-13 | 11 | 6200 | 7.5 | 2750x2000x2400 | 3500 |
| PHS425 | 2500 | 4/6 | 3/4 | 1'37" | 0.5-3" | 27-12 | 13 | 8000 | 7.5 | 3400x2350x2450 | 5200 |
| PHS430 | 3000 | 4/6 | 3/4 | 1'37" | 0.5-3" | 26-8 | 16 | 10000 | 10 | 4000x2350x2450 | 6000 |
| PHS440 | 4000 | 4/6 | 3/4 | 1'45" | 0.5-3" | 24-6 | 20 | 12000 | 10 | 4500x2350x2450 | 8500 |
| PHS615 | 1500 | 6/8 | 4/6 | 1'45" | 0.5-3" | 24-8 | 9 | 6600 | 10 | 2250x2350x2500 | 4000 |
| PHS620 | 5000 | 6/8 | 4/6 | 1'45" | 0.5-3" | 22-7 | 11 | 6500 | 10 | 2750x2350x2500 | 4300 |
| PHS625 | 6000 | 6/8 | 4/6 | 1'45" | 0.5-3" | 28-8 | 14 | 8500 | 15 | 3400x2350x2500 | 6200 |
| PHS630 | 1500 | 6/8 | 4/6 | 1'45" | 0.5-3" | 24-6 | 16 | 10800 | 15 | 4000x2200x2500 | 7000 |
| PHS640 | 2000 | 6/8 | 4/6 | 2" | 0.5-3" | 24-6 | 20 | 13600 | 20 | 5100x2700x2800 | 8400 |
| PHS815 | 1500 | 8/10 | 6/8 | 2" | 0.5-3" | 22-10 | 9 | 10500 | 15 | 2250x2600x2650 | 5000 |
| PHS820 | 3000 | 8/10 | 6/8 | 2" | 0.5-3" | 18-8 | 11 | 12500 | 15 | 2750x2600x2650 | 5500 |
| PHS825 | 4000 | 8/10 | 6/8 | 2" | 0.5-3" | 24-8 | 14 | 16300 | 20 | 3500x2600x2650 | 6800 |
| PHS830 | 5000 | 8/10 | 6/8 | 2" | 0.5-3" | 20-6 | 16 | 18500 | 20 | 4200x2600x2650 | 7700 |
| PHS840 | 1500 | 8/10 | 6/8 | 2" | 0.5-3" | 20-8 | 20 | 23000 | 25 | 5200x2900x2800 | 13500 |
| PHS1015 | 1500 | 10/13 | 8/10 | 2" | 0.5-3" | 20-10 | 9 | 10500 | 15 | 2250x2650x2700 | 5500 |
| PHS1020 | 2500 | 10/13 | 8/10 | 2" | 0.5-3" | 18-8 | 11 | 12600 | 15 | 2750x2650x2700 | 6000 |
| PHS1025 | 3000 | 10/13 | 8/10 | 2" | 0.5-3" | 24-8 | 14 | 17500 | 20 | 3600x2650x2700 | 8000 |
| PHS1030 | 1500 | 10/13 | 8/10 | 2" | 0.5-3" | 20-6 | 16 | 20000 | 20 | 4200x2650x2700 | 10500 |
| PHS1040 | 4000 | 10/13 | 8/10 | 2" | 0.5-3" | 18-6 | 20 | 25000 | 30 | 5200x2900x2900 | 15200 |
| PHS1320 | 2000 | 13/16 | 10/13 | 2" | 1-3" | 13-5 | 11 | 16500 | 20 | 2750x2650x2950 | 7000 |
| PHS1325 | 3000 | 13/16 | 10/13 | 2" | 1-3" | 15-10 | 13 | 32000 | 25 | 3600x2650x2950 | 9600 |
| PHS1330 | 4000 | 13/16 | 10/13 | 2" | 1-3" | 12-6 | 16 | 37000 | 25 | 4200x2650x2950 | 11800 |
| PHS1340 | 5000 | 13/16 | 10/13 | 2" | 1-3" | 10-4 | 20 | 22000 | 30 | 5200x3000x3050 | 17800 |
| PHS1620 | 2000 | 16/20 | 13/16 | 2" | 1-3" | 13-7 | 11 | 20000 | 25 | 2750x2950x3150 | 12000 |
| PHS1625 | 2500 | 16/20 | 13/16 | 2" | 1-3" | 15-8 | 13 | 40000 | 30 | 2600x2950x3150 | 12000 |
| PHS1630 | 3000 | 16/20 | 13/16 | 2" | 1-3" | 12-6 | 16 | 43500 | 30 | 4250x2950x3150 | 15300 |
| PHS1640 | 4000 | 16/20 | 13/16 | 2" | 1-3" | 10-4 | 20 | 30000 | 30 | 5200x3050x3050 | 21500 |
| PHS2020 | 2000 | 20/25 | 16/20 | 2" | 1-3" | 16-8 | 11 | 32000 | 40 | 2900x2950x3150 | 17000 |
| PHS2025 | 2500 | 20/25 | 16/20 | 2" | 1-3" | 15-8 | 13 | 48000 | 40 | 3600x2950x3150 | 18000 |
| PHS2030 | 3000 | 20/25 | 16/20 | 2" | 1-3" | 12-6 | 16 | 52000 | 40 | 4250x2950x3150 | 20000 |
| PHS2040 | 4000 | 20/25 | 16/20 | 2" | 1-3" | 10-4 | 20 | 30000 | 50 | 5200x3050x3500 | 24000 |
