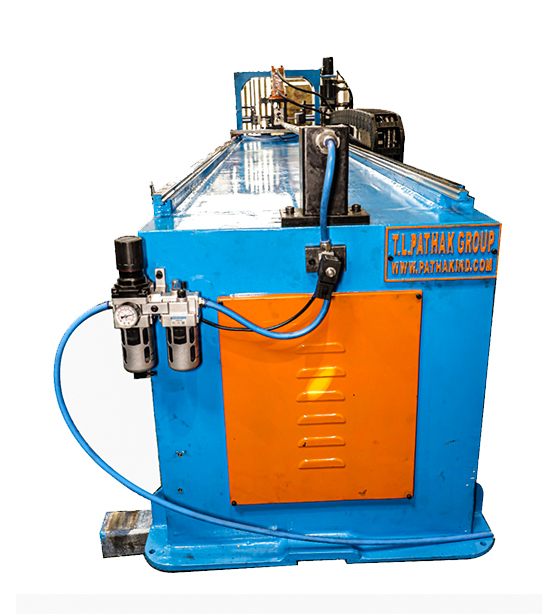

Solar Square Hollow Section (SHS) Punching Machine
Special Purpose Machines (SPM'S)The TL Pathak Group's Solar Square Hollow Section (SHS) Punching Machine is a cutting-edge solution tailored for efficient and precise fabrication in the solar energy sector. Engineered with advanced technology, it seamlessly integrates into manufacturing processes, delivering unparalleled performance and accuracy. This specialized machine is designed to precisely punch holes in SHS, streamlining production and ensuring consistent quality across components. Its robust construction and intuitive controls make it user-friendly and adaptable to diverse production environments. With its high-speed operation and customizable features, it enhances productivity while maintaining stringent quality standards. The TL Pathak Group's SHS Punching Machine is a testament to their commitment to innovation and excellence, empowering manufacturers to meet the demands of the rapidly evolving solar industry with confidence and precision.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model Name | TLPSHSP |
| Body | Mild Steel Fabricated with 8 mm and 20 mm plate |
| Body Head | 50 mm plates |
| Accuracy | +-0.10 mm |
| Sensor | Yes |
| Oil Pump | Hydraulic Pump |
| Electric Motor | 7.5 H.P. Crompton Make |
| Lubrication | Auto Lubrication |
| Maximum Tube Length | 3000 mm (3 m.) |
| Punching Capacity | 5x85 mm |
| Hydraulic Tank | 150 lit. (Without Oil) |
| Electric Panel | 1 Nos. |
| Cycle Time | 3 sec per hole including feed |
| Pipe Clamping | By Hydraulic Cylinder |
| Gear Box | Planetory Gear Box (Delta) |
| HMI | Fuji |
