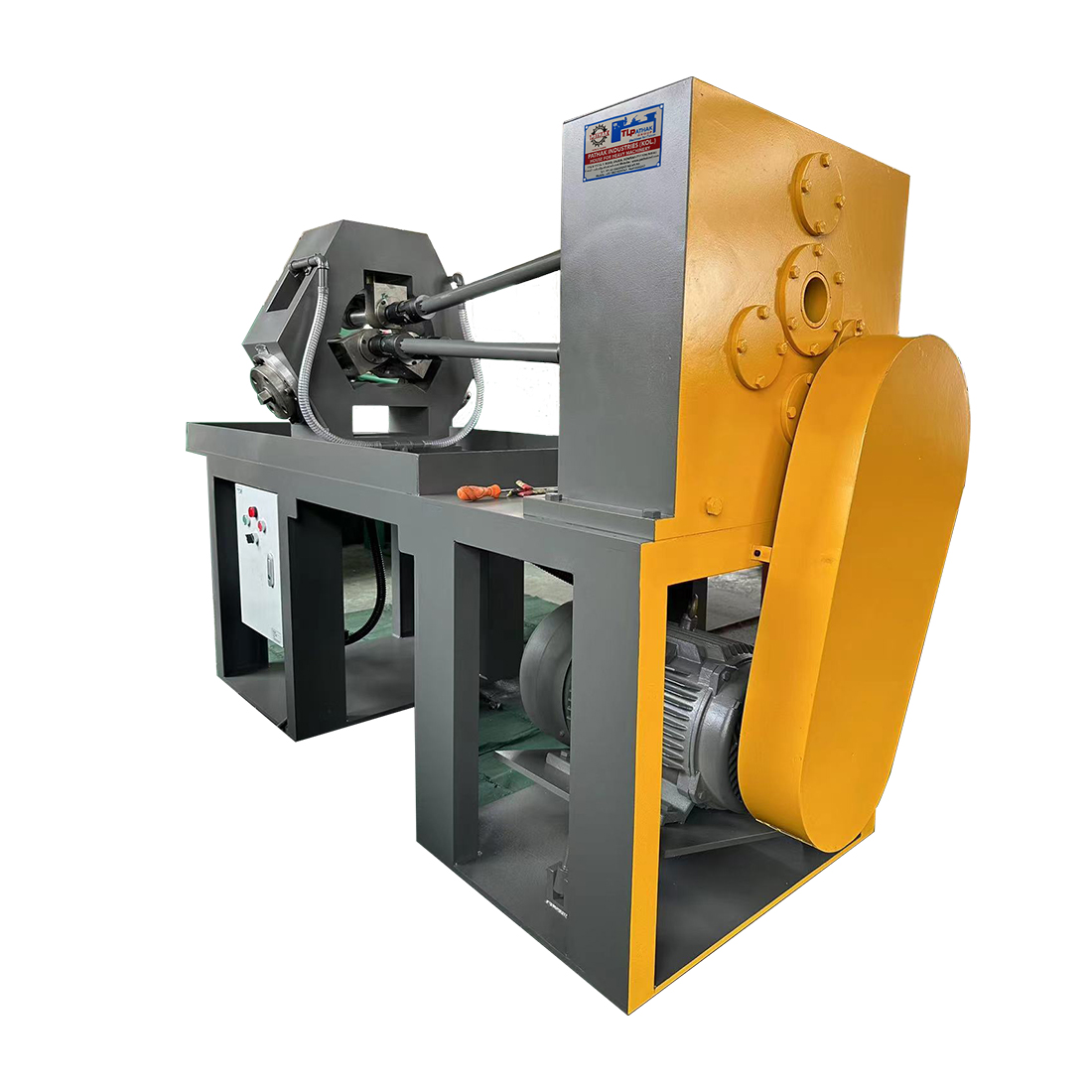

EXTRUDED FIN TUBE MAKING MACHINE
Special Purpose Machines (SPM'S)The TL Pathak Group in India specializes in the manufacturing and supply of extruded fin tube making machines. These machines are crucial in the production of high-quality finned tubes used in various industries such as power plants, heat exchangers, boilers, and refrigeration systems.
The extruded fin tube making machine offered by TL Pathak Group is a state-of-the-art equipment designed for efficient and precise fin tube production. It combines advanced technology with robust construction to ensure reliable performance and long-term durability.
The machine operates by extruding aluminum or copper fins onto the surface of a base tube, enhancing heat transfer capabilities. It is equipped with precision controls and automation features to ensure accurate fin placement and consistent fin dimensions. The machine also incorporates safety mechanisms to protect operators during operation.
TL Pathak Group's extruded fin tube making machine is known for its high production capacity, energy efficiency, and low maintenance requirements. It is designed to meet international quality standards and can be customized to meet specific customer requirements. With the TL Pathak Group's expertise and commitment to excellence, their extruded fin tube making machine is a reliable choice for businesses seeking top-notch equipment for fin tube manufacturing.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | TLPEF 25 | TLPEF 64 | TLPEF 77 |
| Base Tube Material | Aluminium,Carbon Steel,Copper | Aluminium,Carbon Steel,Copper | Aluminium,Carbon Steel,Copper |
| Base Tube Diameter Range | 7-12 mm | 12-32 mm | 15-45 mm |
| Fin Material | Aluminium/Copper | Aluminium/Copper | Aluminium/Copper |
| Fin Material Thickness | 0.3-0.7 mm | 0.3-0.7 mm | 0.3-0.7 mm |
| Fin Height | 7 mm | 16 mm | 16 mm |
| Finished Fin Tube Outer Diameter | 25 mm | 64 mm | 77 mm |
| Spiral Pitch | 1.8 mm,2 mm,2.1 mm,2.3 mm,2.5 mm,2.8 mm,3 mm,3.2-8.0 mm | 1.8 mm,2 mm,2.1 mm,2.3 mm,2.5 mm,2.8 mm,3 mm,3.2-8.0 mm | 1.8 mm,2 mm,2.1 mm,2.3 mm,2.5 mm,2.8 mm,3 mm,3.2-8.0 mm |
| Max Length of Finished Finned Tube | 15 m | 15 m | 15 m |
| Center Line Height of Main Spindle to Worktable | 345 mm | 345 mm | 345 mm |
| Height of Worktable | 718 mm | 718 mm | 718 mm |
| Output Spindle Rotating Speed | 80 RPM | 100 RPM | 120 RPM |
| Fin Rolling Speed | 0.6 m/min | 0.75 m/min | 0.9 m/min |
| Main Drive Motor Power | 11 Kw | 11 Kw | 11 Kw |
| Coolant Water Pump Motor Power | 0.12 Kw | 0.12 Kw | 0.12 Kw |
| Machine Weight | About 1500 Kg | About 1500 Kg | About 1500 Kg |
| Overall Dimension | 2450x1000x1650 mm | 2450x1000x1650 mm | 2450x1000x1650 mm |
