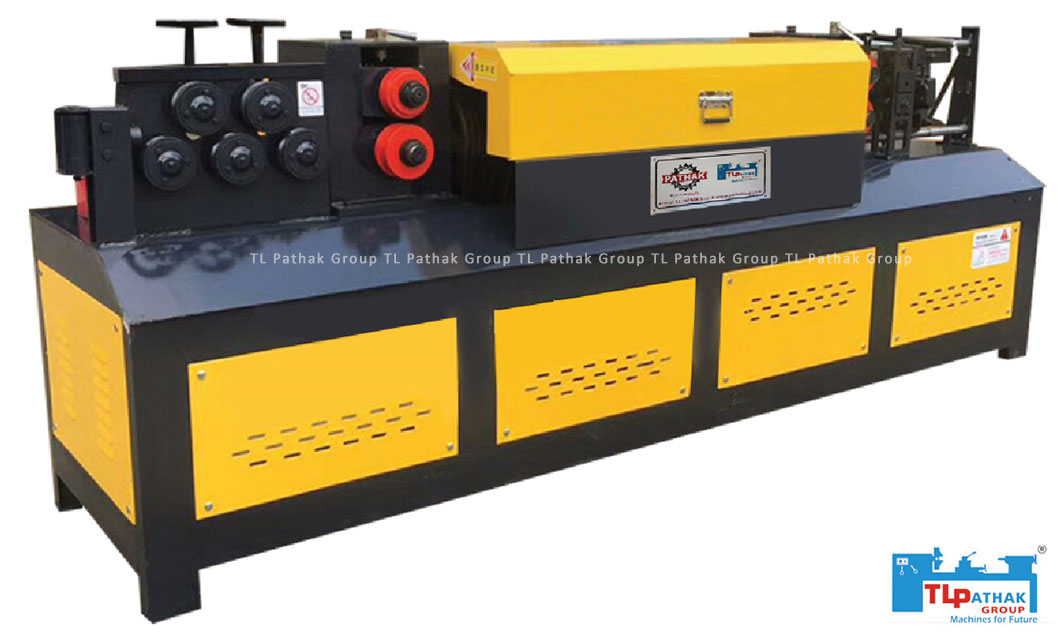

Automatic TMT or Ribbed Wire Straightening and Cutting Machine
Wire Industry MachineryThis machine is an automatic straightening and cutting machine. The thickness of its wire is about 8-15 mm. It gives perfect results and is an ideal machine for all purposes. This machine has a capacity of up to 125ft per min. Automatic TMT Ribbed wire straightening and cutting machines have the most reliable features with a net weight of 3000 kg.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackMODEL | PWWS TMT - 010 | PWS TMT - 014 |
In Thickness of Wire mm | 6 to 10mm | 8 to 13mm |
In Length of Wire to be cut automatically mm |
Semi Any Length and Automatically 20 & 40 feet |
Semi Any Length and Automatically 20 & 40 feet |
Feeding Capacity Per Min. | 70 meter | 90 meter |
Power of Motor H.P | 2+10HP | 2+15HP |
Required R.P.M | 1440 | 1440 |
Approx Weight in kg. Net / Gross | Semi- 1100 / 1300 Auto - 2200 / 2550 |
Semi- 1500 / 1800 Auto - 2600 / 3000 |
TMT Wire
Black Wire
Ribbed Wire
