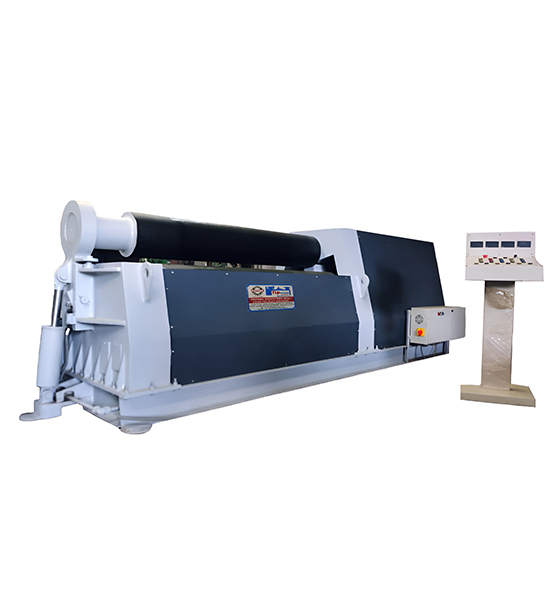

Hydro Mechanical Plate Bending Machine

Sheet Metal Machines

The TL Pathak Group presents an innovative Hydro Mechanical Plate Bending Machine, combining hydraulic and mechanical prowess for superior metal bending. This cutting-edge machine boasts a robust construction and utilizes advanced hydro-mechanical technology to ensure precise and efficient plate bending. With the integration of hydraulic systems, it provides enhanced control, allowing for accurate bending across various plate thicknesses. The machine's design prioritizes durability and performance, catering to the diverse needs of industrial metal fabrication. User-friendly controls enable operators to easily configure bending parameters, enhancing versatility. TL Pathak's Hydro Mechanical Plate Bending Machine represents a pinnacle in metal forming technology, delivering reliability and precision for businesses requiring advanced plate bending capabilities in their manufacturing processes. This machine stands as a testament to TL Pathak Group's commitment to providing state-of-the-art solutions for the evolving demands of the industry.

From ₹
1,280,000
Download Catalog Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-9124009247 OR Call Me Back
Specifications
Model Working Roll Length Max Thickness (MS.) Max Thickness (SS.) Top Roll Diameter Bottom Roll Diameter Power H.P. Power Pack Motor
MPBD-3HM-0615 1550 mm 6 mm 4 mm 120 mm 100 mm 5 1
MPBD-3HM-1015 1550 mm 10 mm 6 mm 160 mm 130 mm 5 1
MPBD-3HM-1215 1550 mm 12 mm 8 mm 180 mm 150 mm 7.5 2
MPBD-3HM-1615 1550 mm 16 mm 12 mm 200 mm 160 mm 10 3
MPBD-3HM-2015 1550 mm 20 mm 14 mm 220 mm 180 mm 12.5 3
MPBD-3HM-2515 1550 mm 25 mm 18 mm 240 mm 200 mm 15 3
MPBD-3HM-3015 1550 mm 30 mm 24 mm 260 mm 225 mm 15 3
MPBD-3HM-0620 2100 mm 6 mm 4 mm 140 mm 115 mm 5 1
MPBD-3HM-1020 2100 mm 10 mm 6 mm 180 mm 150 mm 7.5 2
MPBD-3HM-1220 2100 mm 12 mm 8 mm 200 mm 160 mm 10 3
MPBD-3HM-1620 2100 mm 16 mm 12 mm 220 mm 180 mm 15 3
MPBD-3HM-2020 2100 mm 20 mm 15 mm 240 mm 200 mm 20 5
MPBD-3HM-2520 2100 mm 25 mm 18 mm 260 mm 210 mm 20 5
MPBD-3HM-3020 2100 mm 30 mm 22 mm 300 mm 240 mm 25 5
MPBD-3HM-4020 2100 mm 40 mm 30 mm 340 mm 280 mm 30 7.5
MPBD-3HM-5020 2100 mm 50 mm 36 mm 380 mm 310 mm 40 10
MPBD-3HM-0625 2600 mm 6 mm 4 mm 170 mm 140 mm 7.5 2
MPBD-3HM-1025 2600 mm 10 mm 4 mm 200 mm 160 mm 10 3
MPBD-3HM-1225 2600 mm 12 mm 8 mm 220 mm 180 mm 10 3
MPBD-3HM-1625 2600 mm 16 mm 12 mm 240 mm 200 mm 15 5
MPBD-3HM-2025 2600 mm 20 mm 15 mm 280 mm 230 mm 20 5
MPBD-3HM-2525 2600 mm 25 mm 18 mm 300 mm 240 mm 25 5
MPBD-3HM-3025 2600 mm 30 mm 22 mm 320 mm 260 mm 30 7.5
MPBD-3HM-3525 2600 mm 35 mm 26 mm 340 mm 270 mm 30 7.5
MPBD-3HM-4025 2600 mm 40 mm 30 mm 380 mm 310 mm 30 7.5
MPBD-3HM-4525 2600 mm 45 mm 35 mm 400 mm 330 mm 40 10
MPBD-3HM-5025 2600 mm 50 mm 38 mm 420 mm 350 mm 40 10
MPBD-3HM-6025 2600 mm 60 mm 45 mm 450 mm 380 mm 50 10
MPBD-3HM-0830 3100 mm 8 mm 5 mm 200 mm 160 mm 50 3
MPBD-3HM-1030 3100 mm 10 mm 6 mm 220 mm 180 mm 10 3
MPBD-3HM-1230 3100 mm 12 mm 8 mm 240 mm 200 mm 15 3
MPBD-3HM-1630 3100 mm 16 mm 12 mm 260 mm 210 mm 15 3
MPBD-3HM-2030 3100 mm 20 mm 15 mm 300 mm 240 mm 20 5
MPBD-3HM-2530 3100 mm 25 mm 18 mm 320 mm 260 mm 25 5
MPBD-3HM-3030 3100 mm 30 mm 22 mm 350 mm 280 mm 30 7.5
MPBD-3HM-3530 3100 mm 35 mm 26 mm 380 mm 310 mm 40 10
MPBD-3HM-4030 3100 mm 40 mm 30 mm 400 mm 320 mm 40 10
MPBD-3HM-4530 3100 mm 45 mm 35 mm 420 mm 340 mm 40 10
MPBD-3HM-5030 3100 mm 50 mm 38 mm 450 mm 380 mm 50 15
MPBD-3HM-6030 3100 mm 60 mm 45 mm 480 mm 400 mm 50 15
