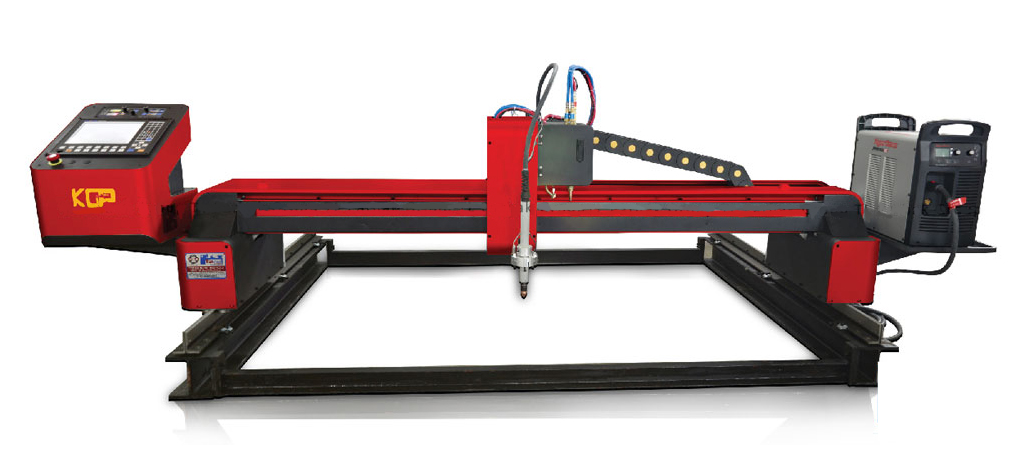

Arc Mate Pro Gantry Type CNC Plasma Machine
CNC MachinesWe provide our customers with the best quality automation grade arcmate pro gantry type CNC plasma machine and have been the best manufacturer and producer in the market for several years. The machines are made of stainless steel and are fully automated which is why it does not require any physical operator which will help you to save your time and money.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
SPECIFICATION |
DESCRIPTION |
|
| Machine Type | Lite Gantry |
|
| Model No. | ArcMate Pro 2070 (Lite Gantry) |
ArcMate Pro 2070 (Lite Gantry) |
| Effective Cutting Width | 2000mm | 2500mm |
| Effective Cutting Length | Customizable length upto 15000mm | |
| Advance Feature | Wireless remote for x-y axis alignment | |
| Driving configuration | Dual drive 86 series stepper motor | |
| Cutting Head | Plasma with Auto z-axis up-down movement and Oxyfuel with manual uo-down switch | |
| Max.Travel Speed | 6000mm/min | |
| Input Power | Single phase 220V, 50Hz + Plasma (depends on power source selection) | |
| Gases required | Compressed air for plasma cutting / LPG and Oxygen for Oxy-fuel cutting | |
| Z-axis (torch) lifting distance | <100mm | |
| Working accuracy | +/- 0.2mm | |
| Cutting capacity | 2mm to 25mm (Mild steel) depending on Plasma power source selection / 10mm to 150mm for Oxy-fuel cutting |
|
| Controller | 10.4'' wide colour screen CNC automation dedicated controller for plasma and oxy-fuel. | |
| Nesting software | Fast Cam basic | |
| Cutting Table Base | Standard material collection Table with weight carrying capacity of 1200 kg | |
| Req. Installation Area | W3.2m * L 8.5m * H 1.5m | W 3.7m*L 8.5m * H 1.5m |
