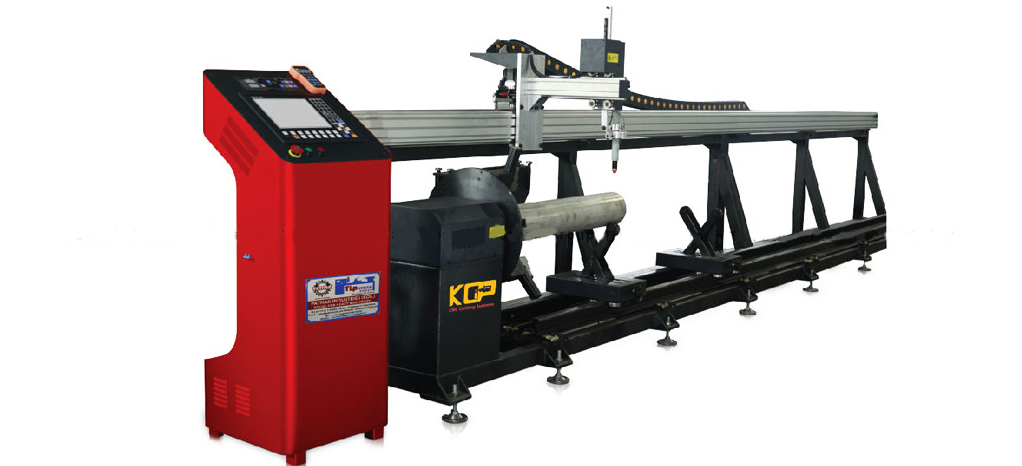

Arc Mate Pipe Tube Cutting Machine
CNC MachinesWe are very well known in the market to produce and manufacture the best quality arcmate pipe tube cutting machine of vast range at affordable prices which do not make holes in our customer pockets. We design machines in such a way that they meet all the expectations of every type of industry and can cut through any thickness of tube.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
SPECIFICATION |
DESCRIPTION |
|
| Machine Type | Lite Gantry |
|
| Model No. | ArcMate Pro 2070 (Lite Gantry) |
ArcMate Pro 2070 (Lite Gantry) |
| Effective Cutting Width | 2000mm | 2500mm |
| Effective Cutting Length | Customizable length upto 15000mm | |
| Advance Feature | Wireless remote for x-y axis alignment | |
| Driving configuration | Dual drive 86 series stepper motor | |
| Cutting Head | Plasma with Auto z-axis up-down movement and Oxyfuel with manual uo-down switch | |
| Max.Travel Speed | 6000mm/min | |
| Input Power | Single phase 220V, 50Hz + Plasma (depends on power source selection) | |
| Gases required | Compressed air for plasma cutting / LPG and Oxygen for Oxy-fuel cutting | |
| Z-axis (torch) lifting distance | <100mm | |
| Working accuracy | +/- 0.2mm | |
| Cutting capacity | 2mm to 25mm (Mild steel) depending on Plasma power source selection / 10mm to 150mm for Oxy-fuel cutting |
|
| Controller | 10.4'' wide colour screen CNC automation dedicated controller for plasma and oxy-fuel. | |
| Nesting software | Fast Cam basic | |
| Cutting Table Base | Standard material collection Table with weight carrying capacity of 1200 kg | |
| Req. Installation Area | W3.2m * L 8.5m * H 1.5m | W 3.7m*L 8.5m * H 1.5m |
