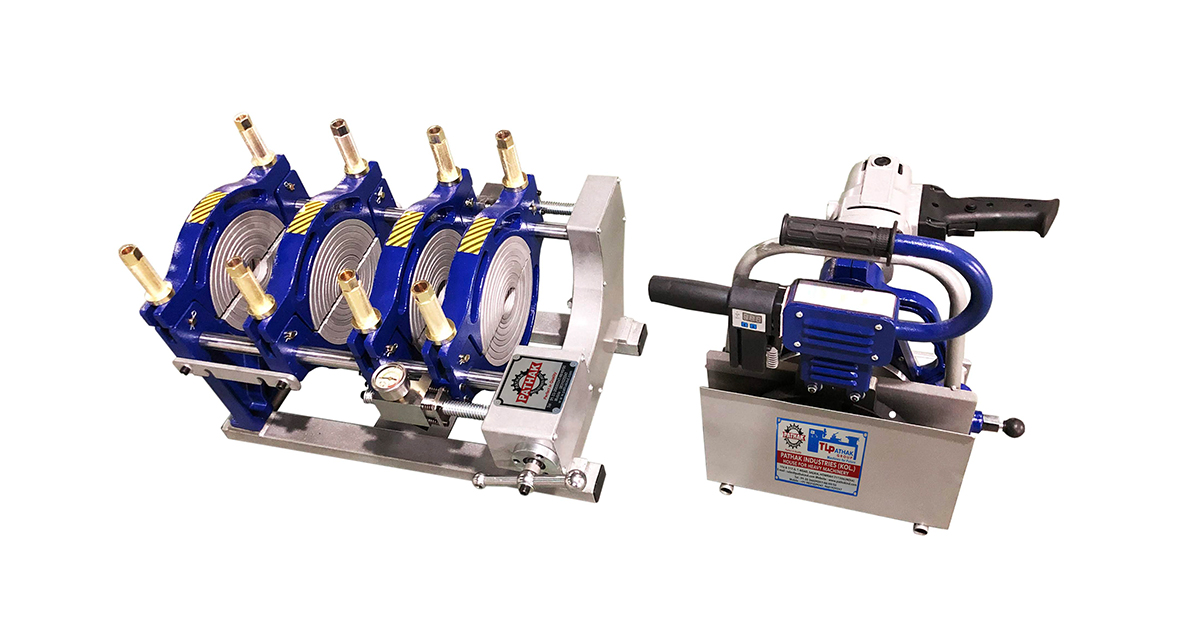

HDPE Pipe Welding Machine 200 mm
HDPE - Pipe Jointing MachineYou can get the best quality machines from our store as we are one of the most reputed and well-known manufacturers and exporters of providing HDPE pipe welding machines 200 mm. All of our clamps are made of aluminum material to make our machines work properly. The life of our machines is very big as we use only high-quality products for our machine and our team works very hard to manufacture these machines.
From ₹
75,000
To
95,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | PHDP160M | PHDP200M | PHDB250M |
| Clamps | 4 Clamps | 4 Clamps | Clamps |
| Welding Range (mm) | 50,63 ,75,90,110,125 140,160 | 63,75,90,110,125,140 160.180.200 | 63,75,90,110,125,14 160,180.200.225.250 |
| Heating Plate Max Temp | 2700C | ||
| Temp. Deviation Surface | +-500 | ||
| Working Voltage | 220 V 50HZ | ||
| Heating Plate Power | 1.0KW | 1.60KW | 2.0KW |
| Planning Tool Power | 1.0KW | ||
| 3.0KW | |||
| Pressure Adjustable Range | 0.6to3MPa | ||
| Weight | 45 kg / 35 k9 | 55 kg / 45 kg | 90 kg / 60 kg |
