Multipurpose Iron Worker Machine

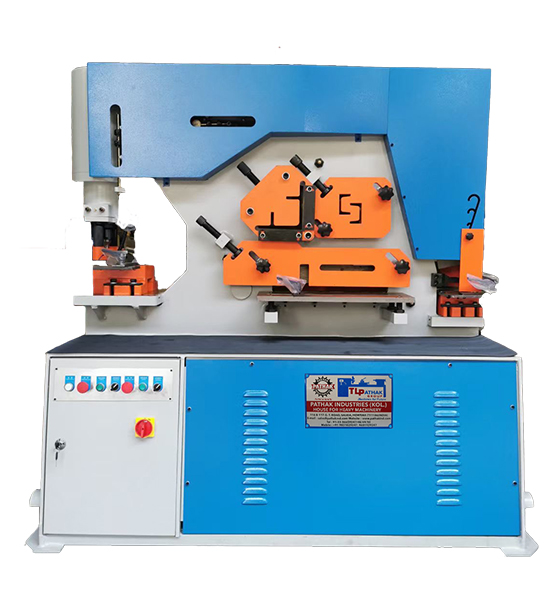

Sheet Metal MachinesThe Multipurpose Iron Worker Machine from TL Pathak Group is a versatile and robust tool designed for precision metalworking tasks. It combines several functionalities into a single unit, including punching, shearing, notching, and bending of various metal profiles and plates. This machine is ideal for small to medium-sized workshops due to its compact design and efficient operation,equipped with dual workstations, it allows simultaneous processing on both sides, enhancing productivity. The hydraulic system ensures smooth and precise operations, while the sturdy construction guarantees durability and stability during intensive use. Standard features include a lifting hook for safe handling, a halogen lamp for better visibility, and high-quality electrical and hydraulic components, ensuring reliable performance.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | PIW-66 | PIW-90 | PIW-120 | PIW-160 | PIW-200 |
| Punching Force | 660 KN | 900 KN | 1200 KN | 1600 KN | 2000 KN |
| Punching Capacity | 25x16 mm | 30x20 mm | 30x25 mm | 35x30 mm | 38x35 mm |
| Throat Depth | 300 | 355 | 406 | 600 | 700 |
| Max Stroke Length | 80 | 80 | 80 | 80 | 80 |
| Cycle/Min (25 mm Stroke) | 20 | 20 | 20 | 20 | 20 |
| Punching Table Height | 940 | 1010 | 1100 | 1250 | 1300 |
| Square Bar Shear | 40x40 | 50x50 | 50x50 | 55x55 | 60x60 |
| Round Bar Shear | 45 | 50 | 60 | 65 | 70 |
| Channel Shear | 120 | 160 | 200 | 280 | 320 |
| H Beam Shear | 120 | 160 | 200 | 280 | 320 |
| Equal Angle at 90 | 125x12 | 140x12 | 160x14 | 180x16 | 200x16 |
| Section Table Height | 940 | 1010 | 1100 | 1250 | 1300 |
| Rectangular Notcher (WxDxT) | 800x100x8 | 800x100x8 | 800x100x8 | 800x100x8 | 800x100x8 |
| Notching Table Height | 900 | 900 | 910 | 1040 | 1040 |
| Max Width Of Shear | 400x8 mm | 480x10 mm | 600x16 mm | 600x20 mm | 700x25 mm |
| Round Bar Shear | 250x16 mm | 330x20 mm | 330x25 mm | 355x30 mm | 450x35 mm |
| Channel Shear | 900 | 900 | 910 | 1030 | 1030 |
| Motor Power | 4 KW | 5.5 KW | 7.5 KW | 11 KW | 15 KW |
| Tensile Strength | 450 N/mm 2 | 450 N/mm 2 | 450 N/mm 2 | 450 N/mm 2 | 450 N/mm 2 |
| Oil Volume | 60 L | 80 L | 120 L | 210 L | 250 L |
| Machine Dimension (LxWxH) | 1640x730x1770 mm | 1860x900x1900 mm | 2355x960x2090 mm | 2690x1040x2300 mm | 2900x1200x2450 mm |
| Machine Weight | 1700 kg | 2300 kg | 4300 kg | 6800 kg | 9500 kg |
