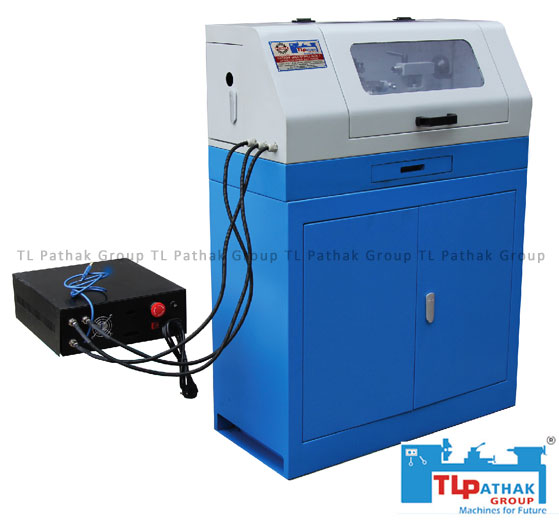

Cnc Lathe Machine Trainer 180
CNC MachinesWe are well-known in the market as the best manufacturer and producer of a wide range of CNC lathe machine trainer 180 at an affordable price range and with perfect quality. The machine has an overall dimensions of 900*400*1250 mm and an average weight of 90 kg along with a stand of 135 kg which is perfect for any operator to work with.
From ₹
548,000
To
650,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackCONTROLLER | MACH 3 |
Max swing over bed | 180mm |
Max.length of work pieces | 300mm |
Spindle bore | 20mm |
Spindle taper | MT3 |
Spindle speed | 50-2250rpm |
Metric thread cutting | 0.5-2.5mm |
Inch thread cutting | 12-52TPL |
Electric toolpost | 4-Position |
X Travel | 60mm |
Z Travel | 250mm |
X Moving speed | 800mm/min |
Z Moving speed | 1200mm/min |
Spindle motor power | 400w (optional;550w) |
X Motor power | 1.5 NM |
Z Motor power | 2 NM |
Mini setting unit | 0.001mm |
Tailstock diameter | 20mm |
Tailstock Travel | 50mm |
Tailstock taper | MT2 |
Overall size | 900x400x1250mm |
Net Weight | 90 kgs WITH STAND 135 KGS |
