Busbar Cutting Machine

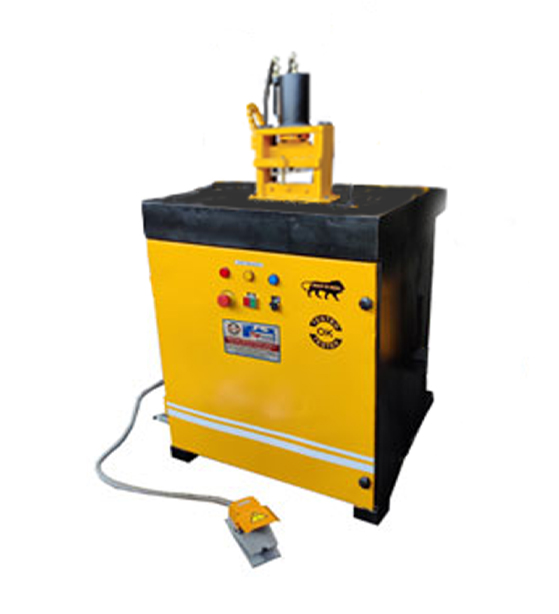

Busbar MachineThe Busbar Cutting Machine offered by TL Pathak Group in India is a specialized tool used for cutting copper and aluminum busbars used in switchboards, transformers, and other electrical applications. It is a hydraulic machine that can cut busbars with different thicknesses and lengths quickly and accurately. The machine has a sturdy construction and is easy to operate, making it an ideal choice for high-volume production environments. It also has a compact design that saves space and allows for easy transportation. Overall, TL Pathak Group's Busbar Cutting Machine is a reliable and efficient solution for cutting busbars and improving the productivity of electrical applications.
From ₹
288,000
To
345,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Punching | INDIE 70 |
| Punching capacity of copper row/aluminum row | |
| 200*12mm (width thickness) punching mold (mm) | 010.5 013.8 017.5 020.5 |
| Punching Force | 35T |
| Cutting | CWC-200 |
| cutting capacity of copper row/aluminum row | |
| 200*12mm(width thickness) Cutting Force | 20T |
| Bending | 200A |
| Bending capacity of copper row/aluminum row | |
| 200*12mm (width thickness) Bending Force | 20T |
| Motor Power | 0.75KW |
| Voltage | 220V 50Hz |
| Table size : (mm) | 700(L)*700(W)*850(H) |
| Oil delivery | low2 5L/min, high 0.9L/min |
| Pressure rating | low 0-20, high 20 700kgf cm |
| Weight | 207kg |
| Packing | wooden box tray packaging |
| Dimension (mm) | 750*960*1220mm |
