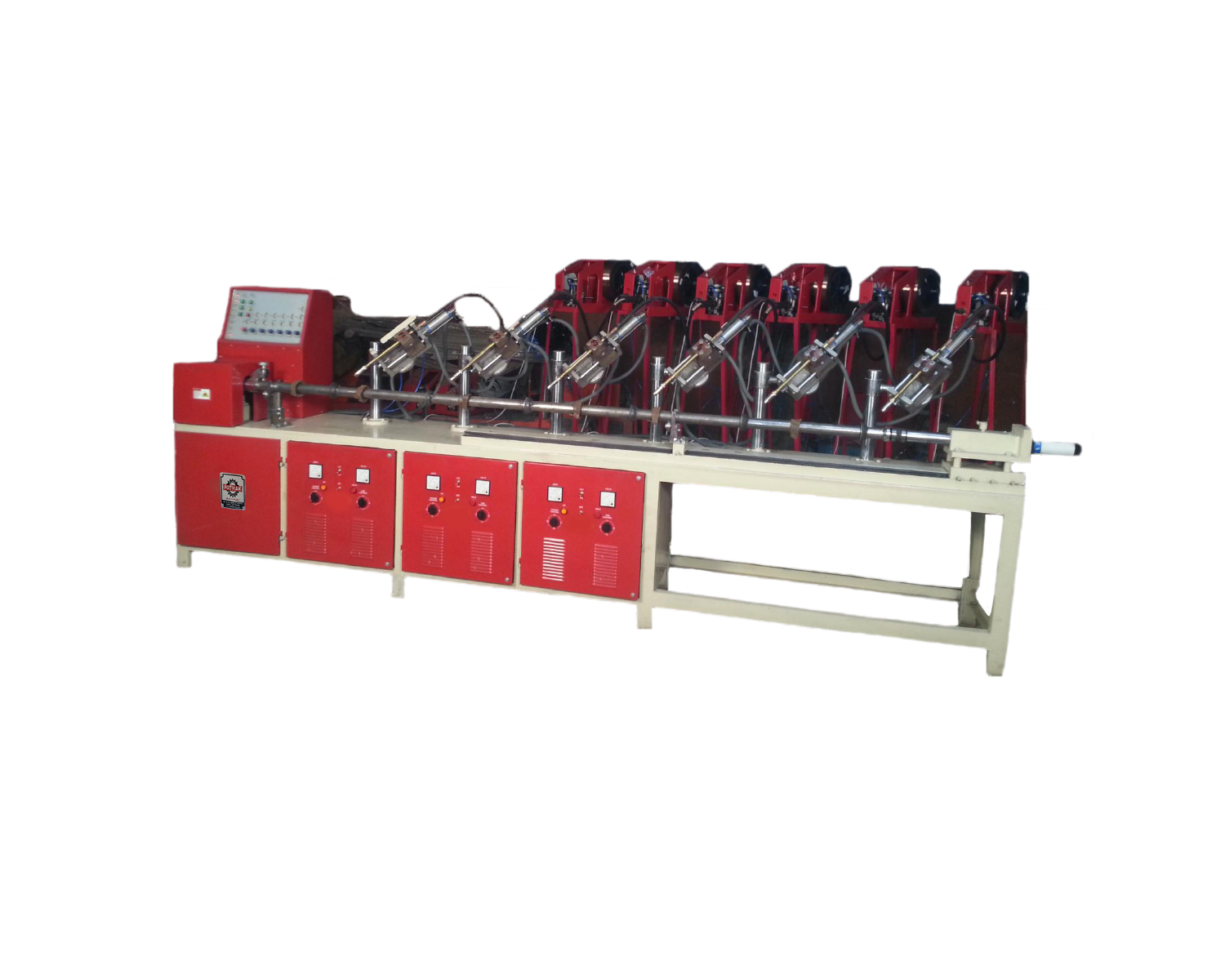

Cup lock Vertical Welding System

This system is based on Circular welding on Cups with Pipe from three positions of cups for Fastest production and Uniform Welding and it helps operator be safe from burning skin of continuous welding process, By using this machine one can save the Consumption of CO2 Gas and weld with proper welding thickness on each single job as per standard required and the production out comes will help them to be competitive in market by fastest supply, clean and safe process of welding.

This Unit is based on 380-415 Volts 50 -60 Hz. Ac as input Supply and Controlled with DELTA make PLC system and Motor Drive, Clamping of Job and de- Clamping is Pneumatically operated for movement of Welding torches.  System Comes with Three welding Mig Machines400 Amps DIODE BASE and Six Wire feeding Units with makes this machine more reliable and is capable to save the cost of Three Extra machines because We have designed this to weld Three Cups in first welding operation and then automatically the same machines starts synchronies with other three wire feeder on the next three Cups for welding operation, This option makes this machine perfect value of money spent of it.

This System has All machines are installed inside the Welding station and Panel buttons are in front of it, this makes it user friendly, Operator can adjust the welding speed and current from one place without any hustle and operator can start and stop machine instantly to avoid damage of welding job. Estimated Welding Duration of All Cups 55 Seconds with minimum 4mm Welding layers.
