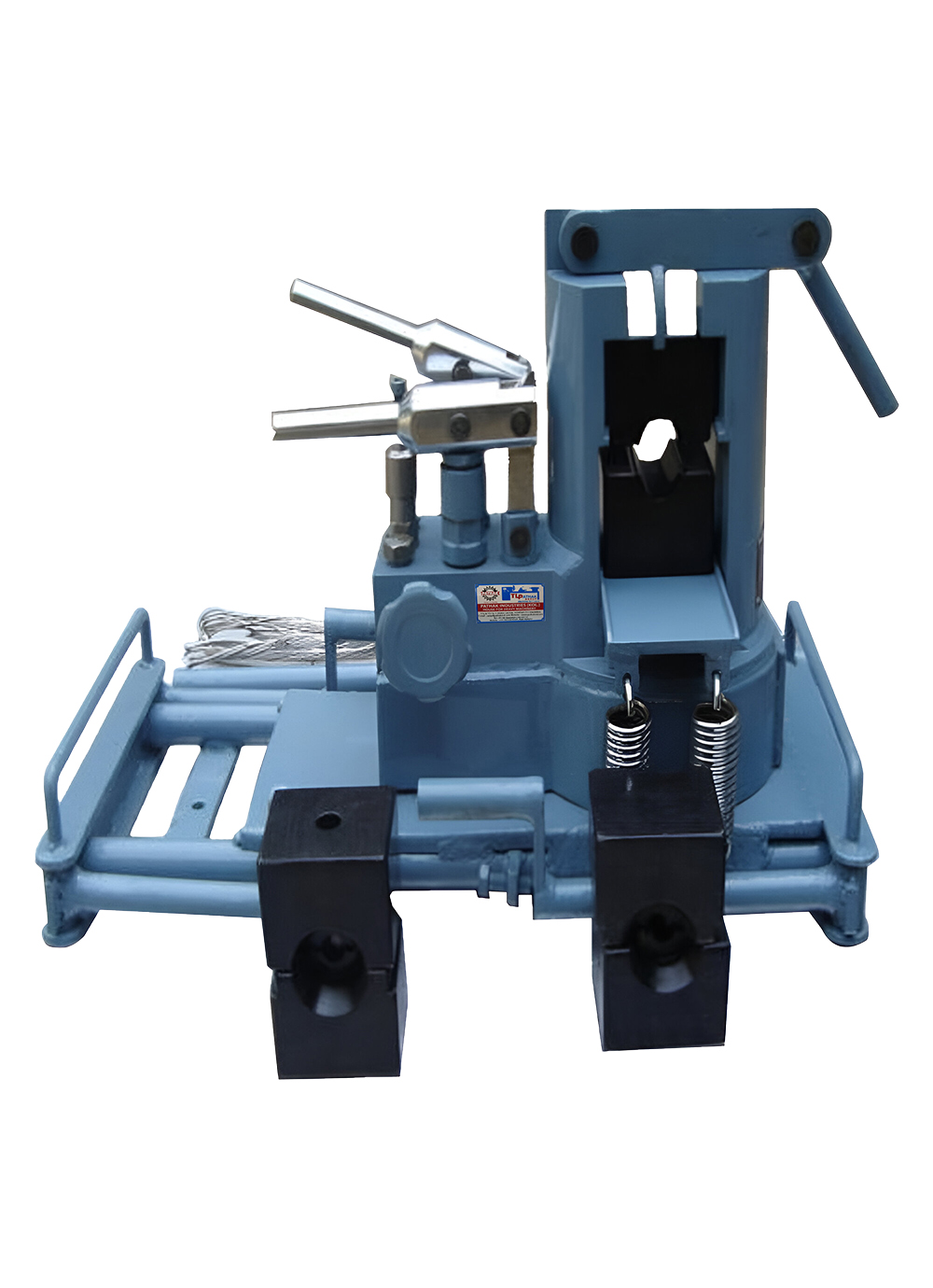

Hand Operated ASCR Machine
Hose Crimping machinesTL Pathak Group introduces a Hand Operated ASCR (Aluminum Conductor Steel Reinforced) Machine, a manual solution designed for efficient and precise stripping of ASCR conductors. This machine is crafted with precision to handle ASCR cables, ensuring clean and accurate stripping without compromising the integrity of aluminum or steel components.Built for user convenience, this hand-operated machine is easy to use, making it a practical choice for various applications in the electrical and utility industries. Its robust construction ensures durability, capable of withstanding the demands of industrial usage,ideal for enhancing workflow efficiency, the ASCR machine enables quick and precise preparation of ASCR conductors for diverse applications. The manual operation provides operators with flexibility and control over the stripping process, ensuring that conductors are stripped to the desired length with accuracy.Safety features are integrated into the design to prioritize operator well-being during the ASCR stripping process. TL Pathak Group's commitment to quality and innovation is evident in the Hand Operated ASCR Machine, providing a reliable, cost-effective solution for industries working with Aluminum Conductor Steel Reinforced cables. This machine caters to the needs of both small-scale operations and larger industrial settings, offering a dependable tool for ASCR cable preparation.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackMODEL | TLPHHCM |
Overall Length of Platform | 750 mm |
Overall Width of Platform | 355 mm |
Overall Height of Machine from Platform Base | 420 mm |
No. of Pumps | 2 No. |
Capacity of Low Pressure Pump | 45 Ton |
Capacity of High Pressure Pump | 100 Ton |
Diameter of Ram | 108 mm |
Length of Operating Handel | 745 mm |
Working Fluid | Hydraulic Oil 32/68 No. |
Total Weight of Machine | 95 Kg |
Weight of Die Set for ASCR | 18-19 Kg |
Weight of Die Set for Earth Wire | 9-9.5 Kg |
Safe Working Load | 100 Ton |
Machine Tested at Load | 125 ton |
Dimension of Die | 100x90x75 mm |
Travel of Ram | 22-25 mm |
