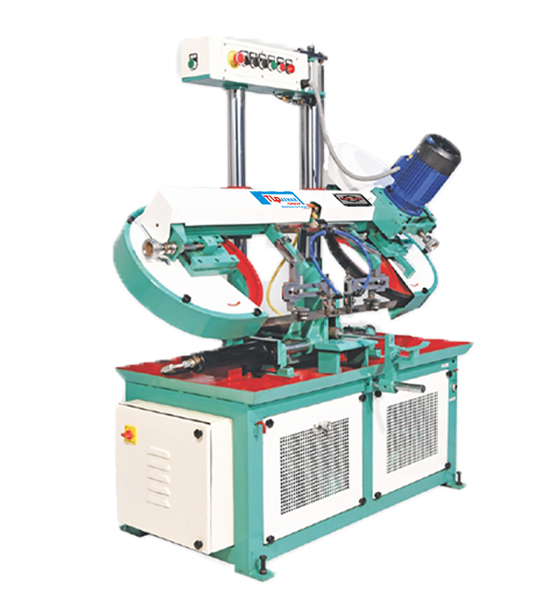

Horizontal Double Column Bandsaw Machine Model-250 H.L.C.
Cutting MachinesThe Horizontal Bandsaw 250 H.L.C. is a high-precision cutting machine manufactured by TL Pathak Group in India. It is designed to offer accurate and efficient cutting of various materials, including metal, plastic, and wood.
With a cutting capacity of up to 250mm, this saw is equipped with a hydraulic linear guide feed control system that ensures precision cutting and easy operation. The saw's design is built with durability in mind, featuring a heavy-duty frame and high-quality materials that can withstand tough industrial environments.
The Horizontal Bandsaw 250 H.L.C. also features a variable speed control system, which allows operators to adjust the blade speed according to the material being cut. It also comes with safety features such as blade guards and emergency stop buttons to protect operators from potential hazards.
Overall, the Horizontal Bandsaw 250 H.L.C. is an excellent choice for any workshop or manufacturing facility that requires high-precision cutting of a wide range of materials.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | 250 S.A. | 250 H.L.C. |
| Cutting Capacity Round Bar(mm) | 250 | 250 |
| Square(mm) | 220x220 | 220x220 |
| Blade Size(mm) | 27x0.9x3200 | 27x0.9x3200 |
| Motor power | 0.85 H.P./960 RPM | 0.85 H.P./960 RPM |
| Coolant Pump Power | 0.15 H.P./2800 RPM | 0.15 H.P./2800 RPM |
| Hydraulic Drive Motor | 0.25 H.P./1500 RPM | 0.25 H.P./1500 RPM |
| Cutting Speed Control | Power Hydraulic | Power Hydraulic |
| Blade Speed Min/Mtr | 32/44/56 | 32/44/56 |
| Net Weight | 352 kg | 385 kg |
| Overall Dimension | 1500x825x1600(LxWxH) | 1500x825x1600(LxWxH) |
