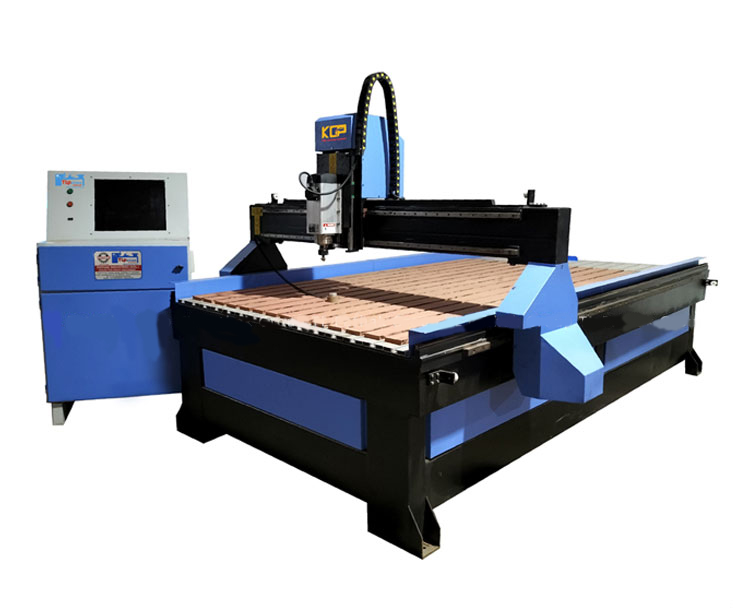

TLP Single Head Router Machine

CNC Machines

T.L Pathak leading manufacturer & exporters of TLP Single Head Router Machine

Features

  • Inbuilt computer system
  • Auto tool height sensor
  • Control system from U.S.A
  • Variable speed and feed range
  • Easy to use software

150 GB Data Provided Presaved Approx 18000 Designs With Catalogue

From ₹
588,000 To 750,000

Download Catalog Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-9124009247 OR Call Me Back
Working Area 4x8 Feet (Standard router)
6 Feet L & 5x5 dia (Router with Rotary)
Z Height 250mm
Transmission X/Y Helical Rack
Table Structure 100x200 Fabrication Pipe
Bed Structure T Slot Aluminum
Spindle Power 4.5 KW Air Cooled
Motion Motor Stepper
Max motion speed 7000 mm/min
Gear Box Casting Gear Box
Rail guide & ball screw Hiwin (Taiwan)
Spindle Drive Fuji (Japan)
Controller Mach3
Opeating Tool Computer Panel
Machine accuracy <0.1 mm
Opeating Power Three phase
Machine Wight 1200 kg
Auto Tool Zero Yes
Fixture Save Feature Yes
Spindle Speed Analog Speed
