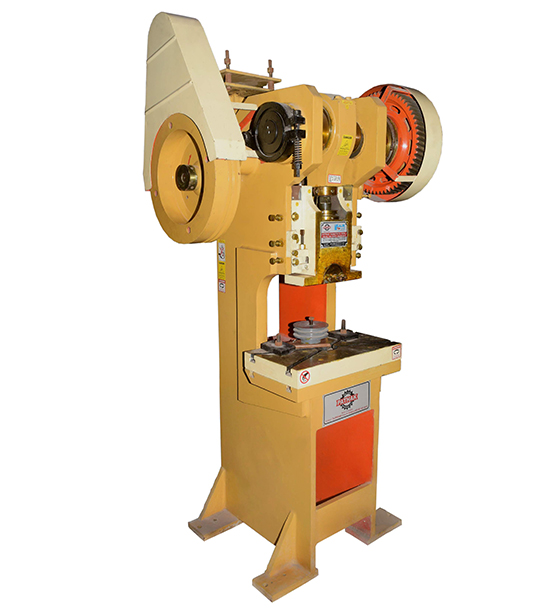

C Type Power Press Machine 50 Ton

Press Machines
Available best quality C Type Power Press Machine 50 Ton with a capacity of 50 ton and mainly used in heavy manufacturing applications like allied industrial establishments, factories, and engineering plants. Machines are highly durable and made with the latest technologies, which help in the smooth functioning with low maintenance cost and works efficiently.
From ₹
475,000 To 476,000
Download Catalog Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-9124009247 OR Call Me Back
Specifications
CAPACITY IN TONS
_
 5 TONS 10 TONS 20 TONS 30 TONS 40 TONS 50 TONS 60 TONS 80 TONS 100 TONS 150 TONS 200 TONS
Crankshaft Diameter MM 70 88 115 130 135 140 150 160 170 190 250
Adjustment of Stroke MM 38 50 63 76 76 89 100 115 130 150 150
Adjustment of Ram MM 25 25 25 25 25 25 25 25 25 25 25
25Punch Hole in Ram MM 25 25 32 38 38 45 45 50 50 80 80
Hole in Bed MM 63 76 82 89 95 101 115 130 150 200 225
Bed Size (Length x Width) MM 355x178 432x228 534x305 585x355 635x355 685x406 712x457 738x508 891x612 1041x737 1100x813
Bed Thickness MM 50 58 63 70 76 83 88 95 114 127 137
Dist.between bed to Ram MM 177 204 250 292 320 350 380 380 406 457 482
Flywheel Dia. MM 406 458 482 533 584 660 762 812 863 965 1016
Stroke per minute MM 80 70 45 40 35 35 30 30 30 25 25
H.P Required MM _ _ _ _ _ _ _ _ _ _ _
For Geared (1440 RPM) HP 1 1.5 2 3 4 5 7.5 10 10 12.5 15
For Ungeared (960 RPM) HP 1 2 3 5 _ _ _ _ _ _ _
Floor to top of Bed MM 700 830 830 880 1000 1000 1000 1000 1000 1000 1000
Allover Size LR X FB X H MM 700x600x1600 800x800x1900 1000x1000x2100 1000x1100x2200 1100x1200x2400 1200x1300x2500 1300x1350x2650 1500x1500x2750 1750x1750x2900 2050x2000x3300 2200x2150x3500
Weight Approximate KG. 350 600 1100 14000 1900 2500 2700 3200 4700 6200 7700
