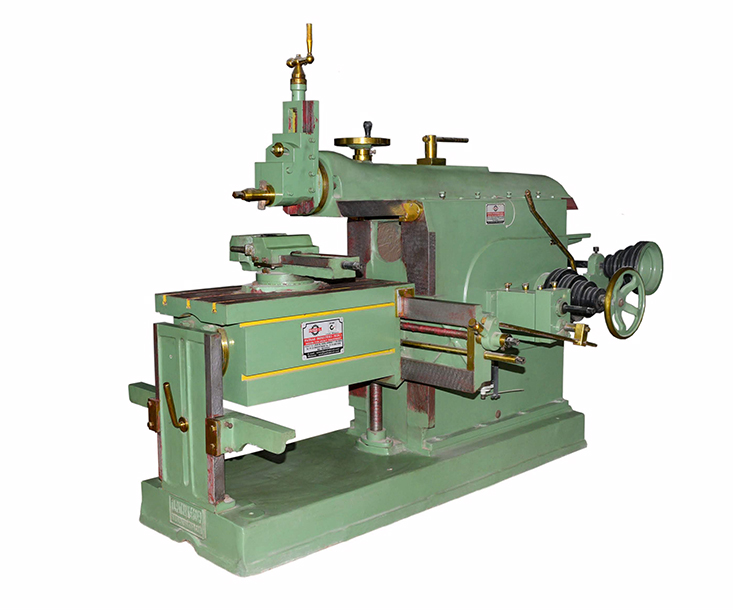

Cone Pulley Type Shaping Machine

Workshop Equipments

The Cone Pulley Type Shaping Machine by TL Pathak Group in India is a versatile and efficient tool for shaping and cutting various workpieces. This machine is designed with a cone pulley drive system, offering multiple speed options for precise control over the shaping process. It features a robust and durable construction, ensuring stability and long-lasting performance. The shaping machine is equipped with a generous stroke length and a sturdy worktable, accommodating different workpiece sizes and shapes. With its reliable functionality and superior craftsmanship, the Cone Pulley Type Shaping Machine is an ideal choice for industries such as manufacturing, engineering, and metalworking.

From ₹
148,000 To 445,000
Download Catalog Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-9124009247 OR Call Me Back
Specifications
MODEL SS12 SS18 SS24 SS30 SS36 SS40
Maximum Working Stroke 14'' 20'' 26'' 32'' 38'' 42''
Length of ram without tool slide 30'' 40'' 53'' 60'' 66'' 75''
Ram bearing in Column 20'' 26'' 31'' 37'' 41'' 44''
Ram bearing width 7.5'' 10.5'' 12'' 12.5'' 12.5'' 14''
Tool Slide Traverse 5'' 6'' 8'' 9'' 10'' 11''
Maximum distance from table to ram 14'' 15'' 16'' 18'' 20'' 24''
Maximum distance from table to ram 2'' 2'' 2'' 2'' 2'' 3''
Horizontal traverse of the table 16'' 20'' 26'' 30'' 32'' 36''
No of speed 3 3 4 4 4 4
Length and width of cross slide 25''*10.5'' 31''*11'' 38''*12'' 43''*12.5'' 46''*12.5'' 51''*15''
Top clamping surface of table 14''*11'' 18.5''*12'' 25''*15 31''*16'' 37''*18.5'' 40''*20.5''
Size of base plate 40''*16.5'' 50''*22'' 64''*23'' 76''*24'' 82''*26'' 90''*30''
Power required 1 H.P. 2 H.P. 3 H.P. 5 H.P. 5 H.P. 7.5 H.P.
Approximate net weight 800 kg. 1200 kg. 1800 kg. 2300 kg. 3200 kg. 4000 kg.
