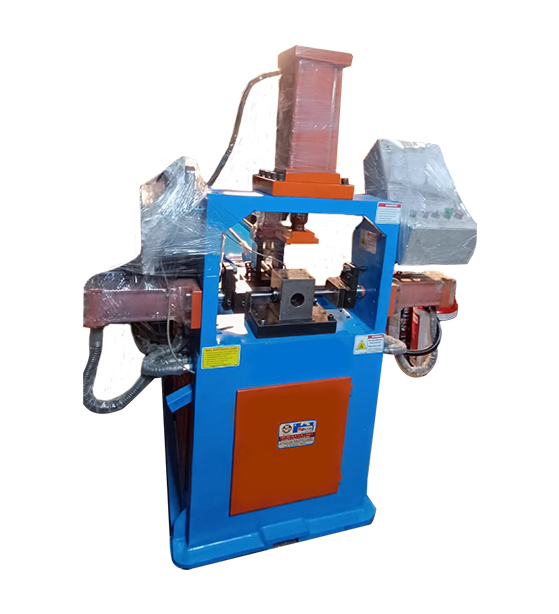

Automatic Angle Punching and Cutting Line Machine
Special Purpose Machines (SPM'S)The TL Pathak Group presents an innovative solution for metal fabrication with the Automatic Angle Punching and Cutting Line Machine. This cutting-edge equipment seamlessly integrates precision punching and cutting functionalities, revolutionizing metal processing workflows. With advanced automation features, it optimizes efficiency and accuracy, reducing production time and labor costs,equipped with state-of-the-art technology, this machine offers unparalleled versatility, accommodating various angle profiles with ease. Its intuitive interface ensures user-friendly operation, while robust construction guarantees long-term reliability in industrial environments. Whether it's for structural steel fabrication or general metalworking tasks, this machine delivers consistent performance and exceptional results.
The Automatic Angle Punching and Cutting Line Machine represents a paradigm shift in metalworking, empowering businesses to streamline operations, enhance productivity, and meet the demands of modern manufacturing with unparalleled efficiency and precision. Trust TL Pathak Group for cutting-edge solutions that redefine industry standards.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel Name | TLPAPCL |
Body | Mild Steel Fabricated |
Electric Control | with PLC Mitsubishi Make |
Accuracy | +-0.10 mm |
Hydraulic Valve | Yuken Brand |
Oil Pump | Hydraulic power pack build with double Pump |
Electric Motor | 7.5 H.P. Crompton Make |
Saving Program | 100 + |
Maximum Angle Length | 6500 mm |
Punching Capacity | 6x65x65 mm |
Hydraulic Tank | 150 lit. (Without Oil) |
Electric Panel | 2 Nos. |
Cycle Time | 3 sec per hole including feed |
Pipe Clamping | By Hydraulic Cylinder |
Gear Box | Servo Motor 1 K.W. Planetory Gear Box |
HMI | Touch Screen 7” Mitsubishi or Fuji Make |
