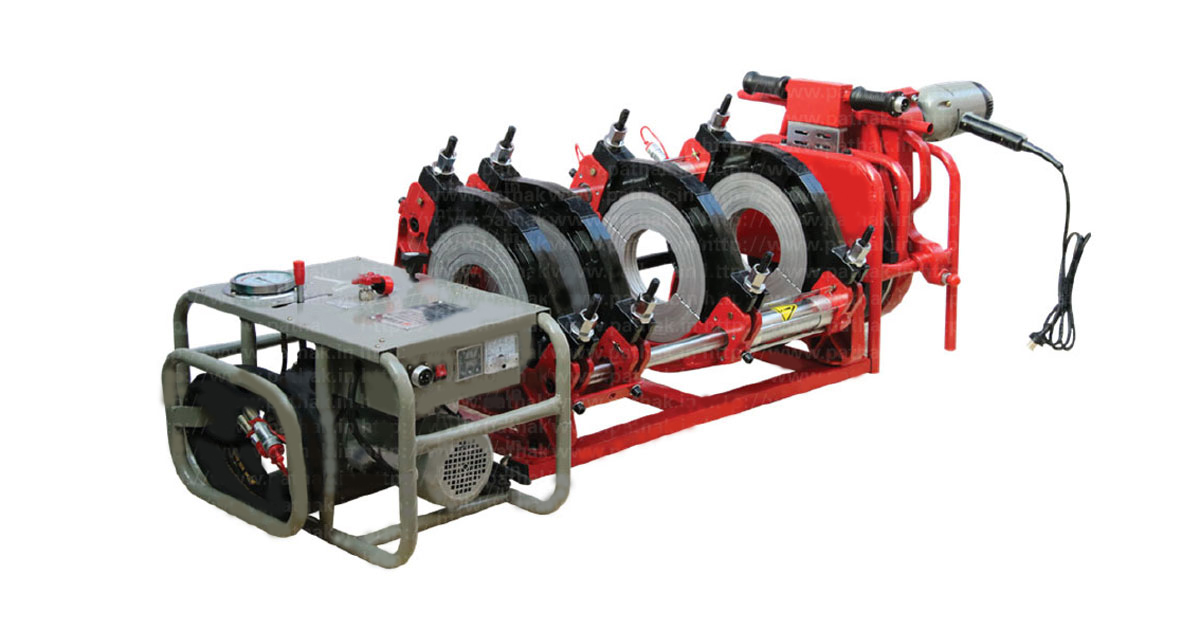

Hydraulic HDPE Pipe Welding Machine 1200
HDPE - Pipe Jointing MachineYou will get our hydraulic HDPE pipe welding machine 1200 at the most affordable prices only from our company because we manufacture the products accordingly as per the prices. You can buy any of them as per your needs. Our team uses only the best quality raw material for production and work under the supervision of our experts. Our only aim is to make our customers satisfied with our services.
From ₹
250,000
To
525,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel | PHDP200 | PHDP315 | PHDP355 | PHDP450 | PHDP500 | PHDP630 | PHDP800 | PHDP1000 | PHDP1200 |
Welding Range (mm) | 50,63,75,90,110,125,140,160,200 | 90,110,125,140,160,180,200,225,250,280,315 | 160,180,200,225,280,315,355 | 280,315,355,400,450 | 280,315,355,400,450,500 | 280,315,355,400,450,500,560,630 | 500,560,630,710,800 | 710,800,900,1000 | 800,900,1000,1200 |
Heating Plate Max. Plate | 2700C | ||||||||
Temp. Deviation in Surface | <+-100C | ||||||||
Presure Adjustable Ranges | 0-6.3MPa | 0-8.0MPa | O-16MPa | ||||||
Working Voltage | 220 V 50HZ | 220 V 50HZ | 220 V 50HZ | 380/ 50HZ/220V50HZ | 380/ 50HZ/220V50HZ | 380/ 50HZ/220V50HZ | 380/ 50HZ/220V50HZ | 380/ 50HZ/220V50HZ | 380/ 50HZ/220V50HZ |
Heating Plate Power | 1.80KW | 3.SKW | 3.60KW | 5.38KW | 6.50KW | 9.35KW | 12.5KW | 17.5KW | 21.5KW |
Planning Tool Power | 1.10KW | 1.10KW | 1.10KW | 1.50KW | 1.50KW | 1.50KW | 2.2KW | 3.0KW | 4.0KW |
Total Power | 3.65KW | 5.35KW | 5.45KW | 8.38KW | 9.50KW | 12.3SKW | 18.2KW | 24.0KW | 29.5KW |
Weight | 135 kg | 230 kg | 260 kg | 450 kg | 560 kg | 650 kg | 1400kg | 2600kg | 2800 kg |
Volume | 0.53M3 | 1.0M3 | 1.1M3 | 2.2M3 | 2.5M3 | 3.2M3 |
