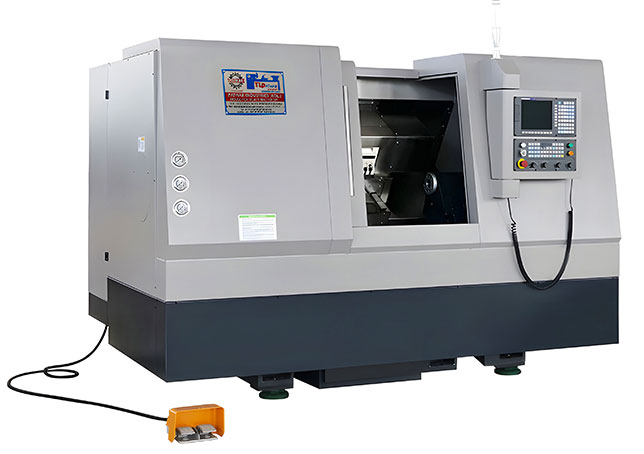

CNC Turn Mill
Milling MachinesThe CNC Turn Mill by TL Pathak Group is a cutting-edge machining solution that seamlessly integrates turning and milling processes in a single, high-performance machine. This versatile equipment excels in precision manufacturing, allowing for efficient production of complex components with reduced setup times. With advanced CNC technology, operators can program and control various machining operations, ensuring accuracy and repeatability.
The CNC Turn Mill is equipped with a robust structure and state-of-the-art components, providing stability and durability during demanding machining tasks. Its multitasking capabilities streamline workflow, eliminating the need for multiple machines and enhancing overall efficiency. The machine accommodates a diverse range of materials and geometries, making it ideal for industries requiring intricate and high-quality components.
TL Pathak Group's CNC Turn Mill represents a commitment to innovation and excellence in machining solutions, catering to the evolving needs of modern manufacturing processes for enhanced productivity and precision in component production.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel | TLPCTM-50A |
Capacity | |
Hydraulic Chuck Size | 8" |
Max. Swing dia. Over bed | 500 mm |
Max. Length of workpiece | 450 mm |
Max. Turning Dia | 400 mm |
Max. Swing Dia. Over Slide | 280 mm |
Spindle | |
Dia. of Spindle Bore | 65 mm |
Max. Dia of through hole | 50 mm |
Spindle Nose | A2-6 |
Spindle Speed Range | 50-3000 r/min |
Max. Spindle Output Torque | 117 Nm |
Spindle Motor | 11 KW |
Axis | |
X Axis Travel | 200 mm |
Y Axis Travel | 550 mm |
X Axis Rapid Traverse | 18 m/min |
Z Axis Rapid Traverse | 18 m/min |
Turret | |
Type of Turret | BMT45 |
Power Turret | 12 position |
Tool Shank Size | 25x25 mm |
Boring Tool Shank Size | 40/30/25/20 mm |
Tailstock | |
Type of Tailstock | Hydraulic |
Travel of Tailstock | 450 mm |
Taper of Tailstock Quill | MT5 |
Max. Loading Capacity | |
Disk Parts | 200 kg |
Shaft Parts | 500 kg |
Others | |
Shaft Parts | 3650 kg |
Overall Dimension (LxWxH) | 2700x1890x1945 mm |
