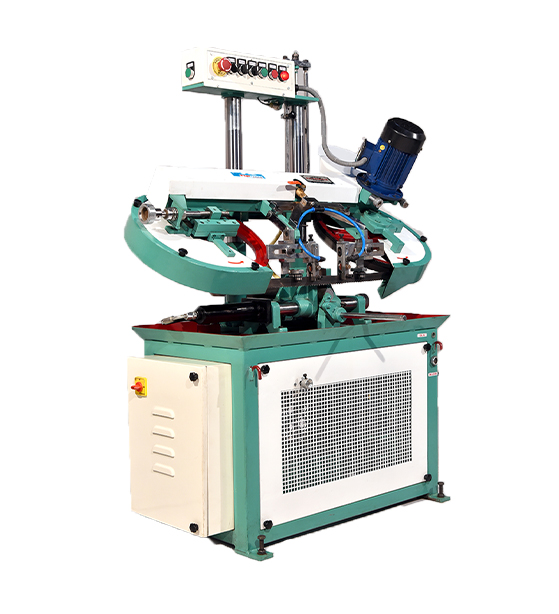

Horizontal Double Column Bandsaw Machine Model-175 H.L.C.

Cutting Machines

The horizontal bandsaw 175 H.L.C is a cutting-edge cutting machine designed by TL Pathak Group in India. This machine is specially designed for high-precision cutting of various materials, including metal, wood, and plastics, and features a robust construction and advanced cutting technology.

The 175 H.L.C has a cutting capacity of up to 175mm, making it suitable for heavy-duty industrial applications that require precise and efficient cutting of large materials. Its advanced control system allows for easy adjustment of cutting speed and blade tension, ensuring precise and accurate cuts every time.

This machine also features a hydraulic feeding system that ensures smooth and consistent feeding of materials, reducing the risk of blade damage and increasing productivity. The 175 H.L.C is designed with safety features, including a blade breakage detector and emergency stop button, ensuring safe operation in industrial settings.

TL Pathak Group is committed to providing high-quality cutting solutions to its customers, and the 175 H.L.C is a testament to this commitment. This machine is a reliable and efficient cutting solution for industrial settings that require high-volume, high-precision cutting of various materials.

From ₹
195,750

Download Catalog Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-9124009247 OR Call Me Back
Model 175 S 175 S.A. 175 H.L.C.
Cutting Capacity Round Bar(mm) 175 175 175
Square(mm) 160x160 160x160 160x160
Blade Size(mm) 27x0.9x2515 27x0.9x2515 27x0.9x2515
Motor power 1 H.P./1440 RPM 1 H.P./1440 RPM 1 H.P./1440 RPM
Coolant Pump Power 0.15 H.P./2800 RPM 0.15 H.P./2800 RPM 0.15 H.P./2800 RPM
Hydraulic Drive Motor x 0.25 H.P./1500 RPM 0.25 H.P./1500 RPM
Cutting Speed Control Power Hydraulic Power Hydraulic Power Hydraulic
Blade Speed Min/Mtr 32/42 32/42 32/42
Net Weight 210 kg 210 kg 210 kg
Overall Dimension 1150x500x1400(LxWxH) 1150x500x1400(LxWxH) 1150x500x1400(LxWxH)
