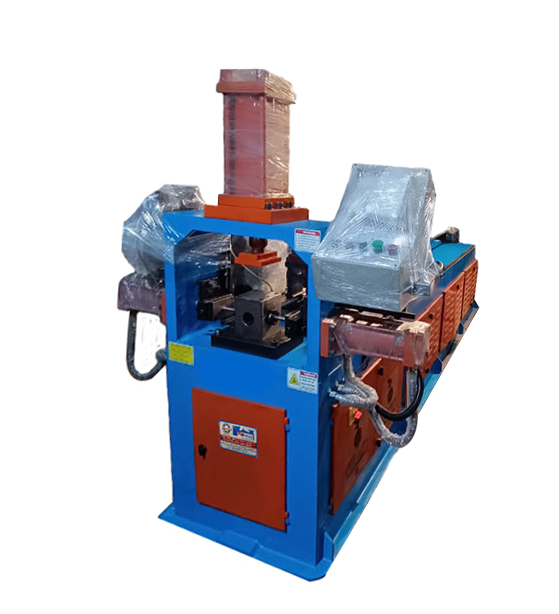

Steel Timber Beams Automatic Punching Machine
Special Purpose Machines (SPM'S)The Steel Timber Beams Automatic Punching Machine, developed by TL Pathak Group, revolutionizes timber beam processing with its advanced features. This cutting-edge machine is designed for precision punching of holes in steel timber beams, streamlining manufacturing processes and enhancing efficiency. With its automated operation, it significantly reduces labor requirements and ensures consistent, high-quality results. Equipped with state-of-the-art technology, including intelligent sensors and computerized controls, it offers unparalleled accuracy and reliability. Its robust construction and durable components ensure longevity and minimal maintenance requirements, maximizing uptime and productivity. Whether used in construction, manufacturing, or other industries requiring steel timber beams, this machine delivers unmatched performance, boosting operational efficiency and reducing production costs. The TL Pathak Group's Steel Timber Beams Automatic Punching Machine sets a new standard in timber beam processing, empowering businesses to meet the demands of modern manufacturing with ease.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel Name | TLPTBAP |
Body | Mild Steel Fabricated |
Electric Control | with PLC Mitsubishi Make |
Accuracy | +-0.10 mm |
Hydraulic Valve | Yuken Brand |
Oil Pump | Hydraulic power pack build with double Pump |
Electric Motor | 7.5 H.P. Crompton Make |
Saving Program | 100 + |
Maximum Angle Length | 6500 mm |
Punching Capacity | 6x65x65 mm |
Hydraulic Tank | 150 lit. (Without Oil) |
Electric Panel | 2 Nos. |
Cycle Time | 3 sec per hole including feed |
Pipe Clamping | By Hydraulic Cylinder |
Gear Box | Servo Motor 1 K.W. Planetory Gear Box |
HMI | Touch Screen 7” Mitsubishi or Fuji Make |
