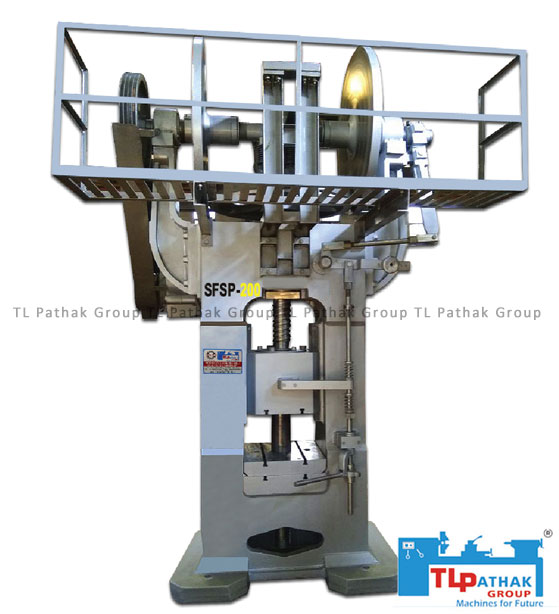

Friction Screw Press Down Stroke
Press MachinesOur engineers manufacture the best quality Friction Screw press downstroke mainly used for Hot Forming and Cold Coining, Stamping, Embossing, Sizing non-ferrous metal made with the latest technology under the supervision of our skilful technical team ensures you the best quality machine with efficient working with all features required by a customer.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackType | Nominal Capacity | Dia of Screw | Stroke of Ram |
Number of Strokes |
Size of Table | Max.Distance B/W Table & Ram | Min.Distance B/W Table & Ram |
Dia of Hole in the table | Dia of Hole in the Ram | Pulley Size |
Power Required |
Tons | mm/inch | mm/inch | Per mintue | mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | H.P./R.P.M | |
FSP | 30 | 75/3 | 150/6 | 40 | 325x350/13x14 | 300/12 | 175/7 | 75/3 | 38/1-1/2 | 100/4B | 3/1440 |
FSP | 50 | 115/4-1/4 | 175/7 | 30 | 325x400/13x16-1/2 | 325/13 | 175/7 | 80/3-1/4 | 38/1-1/2 | 100/4B | 5/1440 |
FSP | 100 | 132/5-1/4 | 250/10 | 25 | 430x470/17x18-1/2 | 450/18 | 200/8 | 100/4 | 50/2 | 100/4B | 10/1440 |
FSP | 150 | 155/6-1/4 | 275/11 | 20 | 450x525/18x21 | 475/19 | 225/9 | 118/4-1/2 | 64/2-1/2 | 125/5C | 15/1440 |
FSP | 200 | 165/6-1/2 | 300/12-3/8 | 18 | 500x540/20x21-1/2 | 500/20 | 250/10 | 125/5 | 64/2-1/2 | 125/5C | 20/960 |
FSP | 300 | 200/8 | 350/14 | 16 | 600x600/24x24 | 580/23 | 280/11 | 140/5-1/2 | 64/2-1/2 | 175/7C | 25/960 |
FSP | 400 | 225/9-1/2 | 375/15 | 14 | 700x700/28x28 | 600/24 | 300/12 | 150/6 | 89/3-1/2 | 175/7C | 30/960 |
FSP | 500 | 255/10 | 405/16 | 12 | 760x760/30x30 | 625/25 | 325/13 | 150/6 | 118/4-1/2 | 175/7C | 40/960 |
FSP | 630 | 280/11 | 432/17 | 10 | 810x810/32x32 | 660/26 | 355/14 | 150/6 | 118/4-1/2 | 175/7C | 50/960 |
FSP | 800 | 292/11-1/2 | 457/18 | 8 | 865x865/34x34 | 710/28 | 380/15 | 165/6-1/2 | 125/5 | 175/7C | 60/960 |
FSP | 1000 | 307/12-1/2 | 507/20 | 6 | 915x915/36x36 | - |
- |
- |
- |
- |
- |
