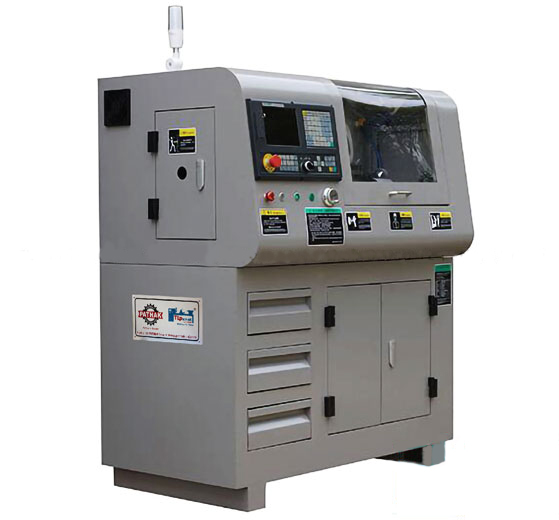

Mini CNC Lathe Machine
CNC MachinesIf you were looking for a mini CNC lathe machine then you have come to the right place as we are one of the most renowned manufacturers of the machine in the market. With overall dimensions of 1300*800*1500 mm and overall weight of 350 kg, this machine makes less noise and has high precision. It is best for educational training and mould machining.
From ₹
788,000
To
985,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackMODEL | CNC 210 |
Max.Swing over bed | 210mm |
Distance between centers | 400mm |
Spindle bore dia. | 26mm |
Spindle taper | MT4 |
Spindle speed | 3000rpm |
Tool post | 4-position |
Gangtool bar size | 12mm |
X-axis travel | 90mm |
Z-axis travel | 300mm |
X moving speed | 2000mm/min |
Z moving speed | 2000mm/min |
Spindle motor power | 1.2kw |
Min. setting unit | 0.001mm |
Tailstock dia. | 22m |
Tailstock tavel | 50mm |
Tailstock taper | MT2 |
Overall size | 1300x800x1500mm |
N.W | 350kgs |
