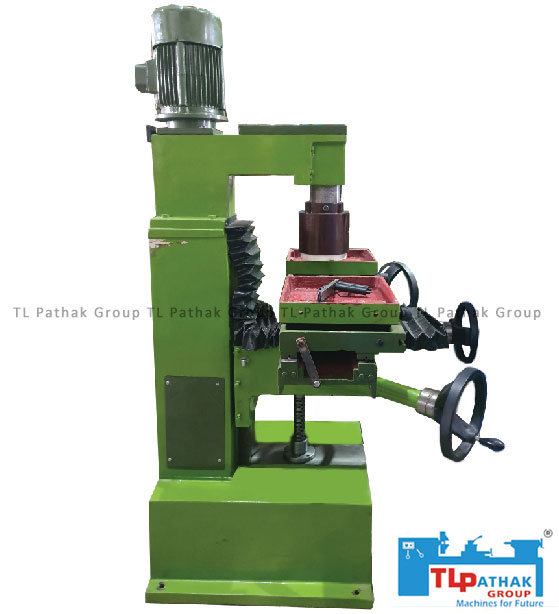

Manual Vertical Surface Grinder
Grinding MachinesTL Pathak Group in India offers Manual Vertical Surface Grinders that are ideal for precision surface grinding applications. These machines are operated manually, providing the operator with full control over the grinding process. With a vertical design, they offer excellent stability and rigidity, ensuring accurate and consistent results. The manual operation allows for adjustments and fine-tuning based on the operator's expertise and requirements. TL Pathak Group's Manual Vertical Surface Grinders are built with high-quality components and robust construction, ensuring durability and long-term reliability. These machines are suitable for various industries and applications, providing efficient and precise surface grinding capabilities.
From ₹
92,000
To
96,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Models | PPSC-20 | PPSC-24 | PPSC-30 |
| Working Surface of Table | 525X205 MM | 625X200 MM | 625x300 MM |
| Grinding Capacity | 500X200 MM | 600X200 MM | 600X300 MM |
| Longitudinal Traverse | 525 MM | 610 MM | 630 MM |
| Cross Traverse | 215 MM | 215 MM | 320 MM |
| Vertical Traverse | 250 MM | 250 MM | 330 MM |
| Grinding Wheel Dia and Width | 200X12 MM | 200X12 MM | 200X12 MM |
| Spindle Speed | 2800 RPM | 2800 RPM | 2800 RPM |
| Cross Feed Graduation | .05 MM | .05 MM | .05 MM |
| Vertical Feed Graduation | .02 MM | .02 MM | .02 MM |
| Floor Space Requires | 1150X900 MM | 1250X1200 MM | 1850X1350 MM |
| Weight Gross | 1250X kgs. Approx | 1350 kgs. Approx | 1750 kgs. Approx |
ELECTRICALS |
- |
- |
- |
| Electrical Motors For Grinding Wheel | 1.0 H.P 2800 | 1.0 H.P 2800 | - |
| Elecrtrical Motor For Auto Feed Models Only | - |
1.0 H.P 1440 | - |
