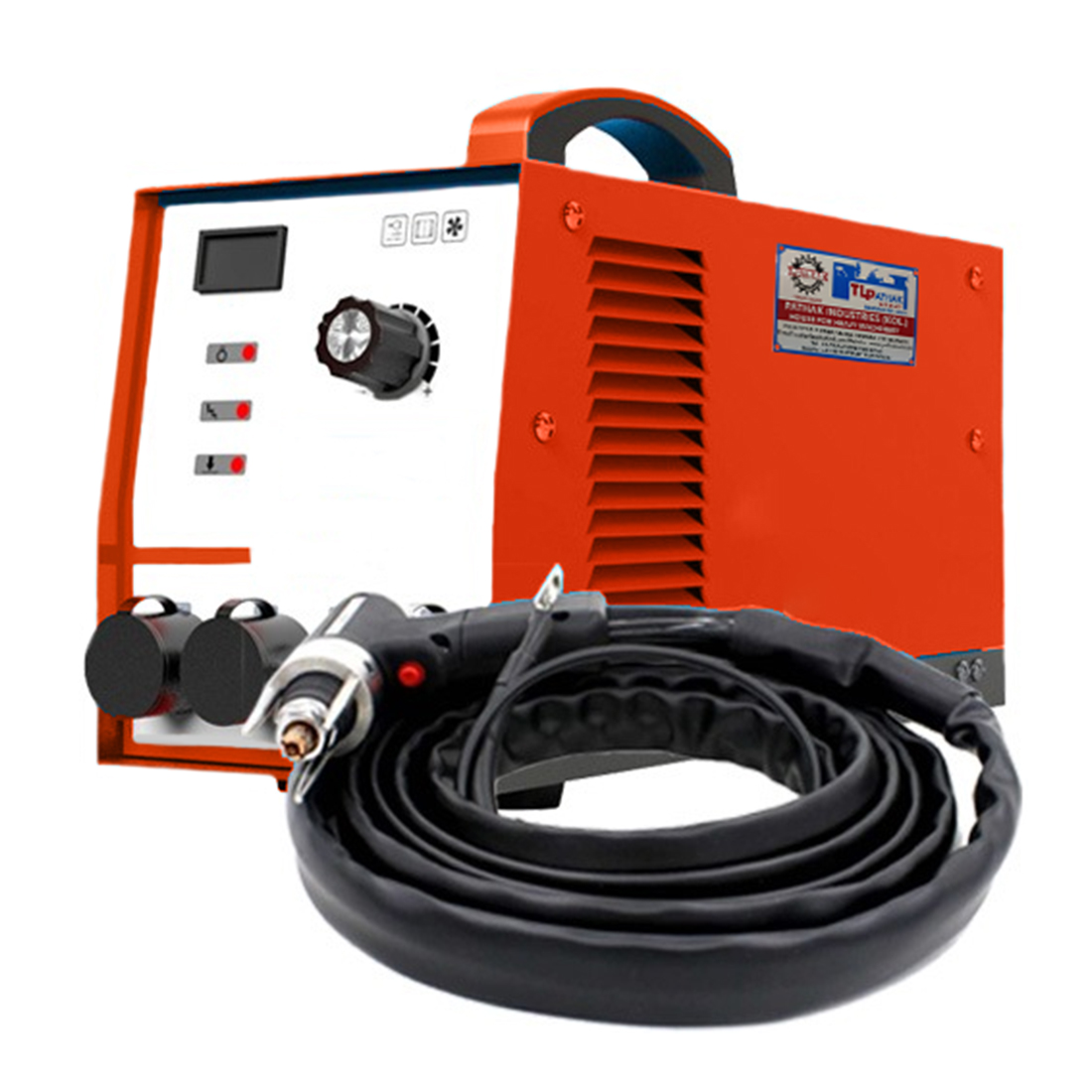

Stud Welder
Welding EquipmentsThe TL Pathak Group presents its Stud Welder, a cutting-edge solution for fast and efficient stud welding operations. Crafted with precision engineering, this machine ensures accurate and reliable welds, catering to diverse industrial applications. The Stud Welder features user-friendly controls, enabling operators to easily manage and adjust welding parameters.
Stud Welder is designed to accommodate different stud sizes and materials, providing versatility in welding processes. The robust construction and high-quality components contribute to durability and longevity in demanding industrial environments. This welding machine exemplifies TL Pathak Group's commitment to delivering advanced and reliable solutions for stud welding applications, addressing the diverse needs of the manufacturing sector with precision and efficiency.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | TLPSTW-10M |
| Welding Range | M3-M10 |
| Welding Process | Capacitor Discharge |
| Charging Voltage (VDC) | 30-200 |
| Primary Power,V | 220 V,50/60 Hz |
| Welding Time,Sec | 0.001-0.003 |
| Charging Capacity,?F | 141,000 |
| Energy Stored | 2500 J |
| Input Capacity | ?0.8 KW |
| Weld Rate,studs/min | 10-25 |
| Charge Time,Sec | <3 |
| Fusing,A | 20 |
| Welding Material | Mild steel, stainless steel, aluminium, brass |
| Insulation | H |
| Cooling | Air Cooled |
| Weld Mode | Contact |
| Dimensions (LxWxH) | 480x220x300 mm |
| Overall Weight (Approx) | 32 kg |
