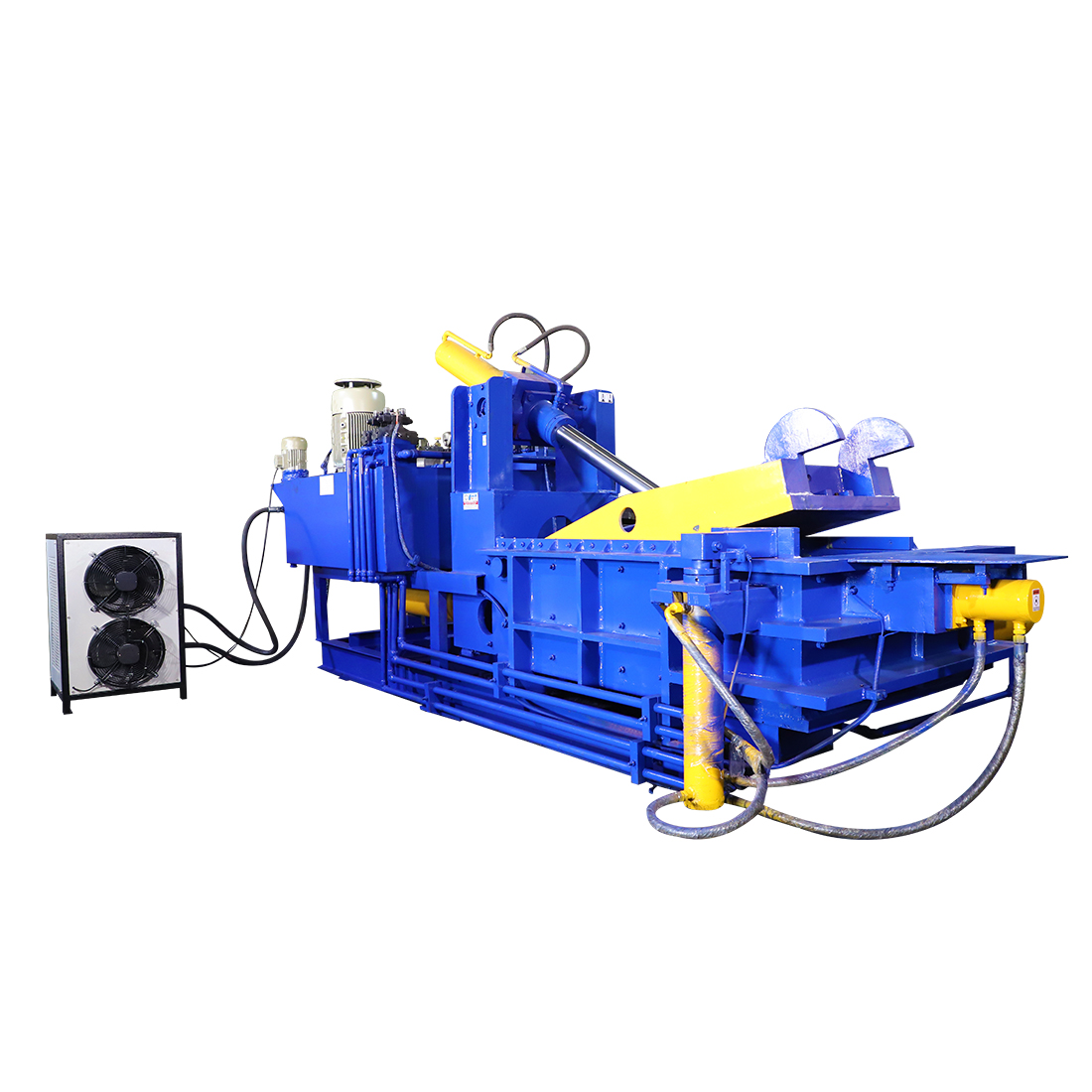

Triple Action Scrap Baling Press
Scrap Baling MachinesTL Pathak Group's Triple Action Scrap Baling Press is an advanced industrial solution designed for the efficient processing and recycling of scrap materials. This powerful machine operates with a triple-action compression mechanism, utilizing three cylinders to maximize compaction force. It is capable of baling diverse materials such as metal, paper, cardboard, and plastic, producing dense and manageable bales for convenient storage and transportation. Equipped with user-friendly controls, safety features, and a robust structure, this baling press ensures a high level of operational efficiency and operator safety. The triple action design enhances the overall compaction process, making it an ideal choice for industries dealing with large volumes of scrap materials. TL Pathak Group's Triple Action Scrap Baling Press is a reliable and effective solution for businesses aiming to optimize their waste management processes while contributing to environmental sustainability through efficient recycling.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | PTHB 8"x8" | PTHB 10"x10" | PTHB 12"x12" | PDHB 14"x14" | PDHB Triple Action Scrap Baling Press Machine with Hydraulic Hopper (Model-PTHB 20"x20" |
| Baling Chamber | 20"x22"x50" (HxWxL) | 20"x24"x52" (HxWxL) | 24"x26"x55" (HxWxL) | 24"x28"x52" (HxWxL) | 30"x48"x80" (HxWxL) |
| Bale Size | 8"x8" (HxW) | 10"x10" (HxW) | 12"x12" (HxW) | 14"x14" (HxW) | 20"x20" (HxW) |
| Electric Motor | 20+2 H.P.,3 Phase,1440 RPM | 20+2 H.P.,3 Phase,1440 RPM | 25 H.P.,3 Phase,1440 RPM | 25+2 H.P.,3 Phase,1440 RPM | 50 H.P.,3 Phase,1440 RPM |
| Body | Fabricated 40+12 mm | Fabricated 40+12 mm | Fabricated 40+12 mm | Fabricated 40+12 mm | Fabricated 50+12 mm |
| Hard Liner Plates | Provided (C 45) 12 mm | Provided (C 45) 12 mm | Provided (C 45) | Provided (C 45) 12 mm | Provided (C 45) |
| Oil Drive | Double Vane Pump Systems | Double Vane Pump Systems | Double Vane Pump Systems | Double Vane Pump Systems | Double Vane Pump Systems |
| Working Liquid | HYDRO/ENCLO-68 (Not in Our Scope) | HYDRO/ENCLO-68 (Not in Our Scope) | HYDRO/ENCLO-68 (Not in Our Scope) | HYDRO/ENCLO-68 (Not in Our Scope) | HYDRO/ENCLO-68 (Not in Our Scope) |
| Force On Lid Cylinder | 40 Tons (150 Borex170 ODx100 RAM) | 40 Tons (150 Borex170 ODx100 RAM) | 40 Tons (150 Borex180 ODx100 RAM) | 40 Tons (150 Borex180 ODx100 RAM) | 60 Tons (180 Borex220 ODx120 RAM) |
| Force On Main Cylinder | 80 Tons (200 Borex245 ODx135 RAM) | 80 Tons (200 Borex245 ODx135 RAM) | 100 Tons (220 Borex270 ODx150 RAM) | 100 Tons (220 Borex270 ODx150 RAM) | 150 Tons (250 Borex300 ODx180 RAM) |
| Force On Side Cylinder | 120 Tons (250 Borex300 ODx150 RAM) | 120 Tons (250 Borex300 ODx150 RAM) | 120 Tons (270 Borex320 ODx160 RAM) | 120 Tons (270 Borex320 ODx160 RAM) | 120 Tons (350 Borex400 ODx200 RAM) |
| Maximum Working Pressure | 3000 PSI | 3000 PSI | 3000 PSI | 3000 PSI | 3000 PSI |
| Oil Cooling Systems | Provided | Provided | Provided (2 TR AC) | Provided (2 TR AC) | Provided (3 TR) |
| PLC/Starter | Provided | Provided With All Safety | Optional | Optional | Provided |
| Idle Cycle Time | 60-70 Sec.(Approx) | 60-70 Sec.(Approx) | 60-70 Sec.(Approx) | 60-70 Sec.(Approx) | 90-100 Sec.(Approx) |
| Weight of The Bale | 30 to 40 kg | CRC 20 to 40 kg | 40 to 60 kg | 25 to 30 kg,Cartoon 30 to 40 kg | 180 to 200 kgs,Depend on Material and its density |
| Oil Tank Capacity | 800 Ltr | 800 Ltr | 800 Ltr | 800 Ltr | 1500 Ltr |
| Operation Of The Machine | Hand Lever Operate/Fully Automatic | Hand Lever Operate | Manual Through 3 Levers | Manual Through 3 Levers | PLC Operate |
| No. of Cylinder | - | - | 5 Nos. | 5 Nos. | - |
| Lock Cylinder | - | - | 12 TON (100 Borex115 ODx65 RAM) | 12 TON (100 Borex115 ODx65 RAM) | 20 TON (125 Borex150 ODx80 RAM) |
| Bale Eject Cylinder | - | - | 12 TON (100 Borex115 ODx65 RAM) | 12 TON (100 Borex115 ODx65 RAM) | 20 TON (125 Borex150 ODx80 RAM) |
| Material Feeding | - | - | - | - | Hopper Provided |
