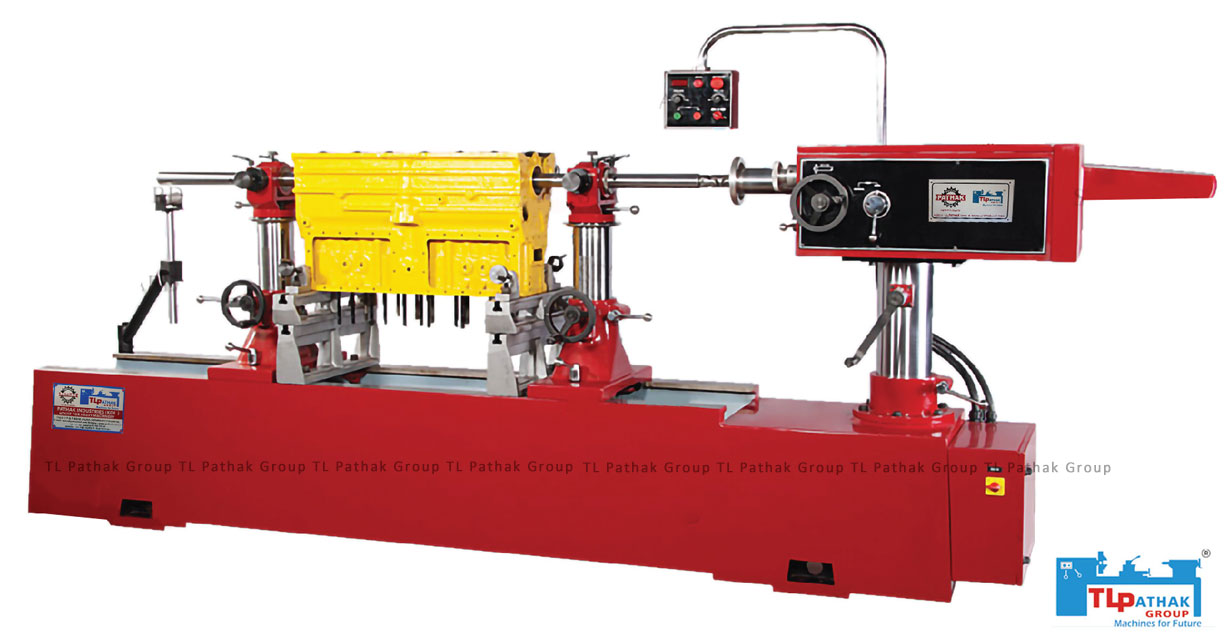

Horizontal Line Boring Machine
Garage MachinesPathak is a leading brand manufacturing best quality Horizontal Line Boring Machine mainly used to drill holes horizontally and allows extensive parts to be easily machined. The machine is made under the supervision of our professional engineers and provides easy usage and smooth functioning with low maintenance costs and efficient working results in high output.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| MODEL | PLBM 2500 | PLBM 1500 |
| Maximum Length of Block | 2500 MM (98.5'') | 1500 MM (59'') |
| Max.Distance Between Top of Bed To Boring Bar Center | 850 MM (33.5'') | 750 MM (29 1/2'') |
| Min.Distance Between Top of Bed and Boring Bar Center | 550 MM (215'') | 450 MM (17 3/4'') |
| Boring Capacity With Standard Equipments | 32 MM - 175 MM (1.25'' - 7'') | 32 MM - 140 MM (1 1/4 - 5.5'') |
| Boring Capacity With Optional Equipments | 24 MM - 225 MM (1''- 8.9'') | 24 MM - 225 MM (1'' - 8 3/4'') |
| Spindle Speed Infinitely Variable | 80 - 700 RPM | 80 - 700 RPM |
| Feed Both Directions Infinitely Variable | 0-50 MM / MIN. | 0 - 50 MM / MIN. |
| Max.Travel of Boring Bar | 450 MM (17 3/4'') | 450 MM (17 3/4'') |
| Drive Motor (A.C) | 1.5 KW / 2 HP | 1.5 KW / 2 HP. |
| Spindle Feed Motor (D.C) | 0.18 KW / 0.25 HP | 0.18 KW / 0.25 HP |
| Length of Machine | 4840 MM (190'') | 3840 MM (151'') |
| Width of the Machine | 750 MM (29 1/2'') | 750 MM (29.5'') |
| Height of Machine | 1850 MM (73'') | 1750 MM (69'') |
| Work Space Required (LxWxH) | 6000 MM X 1750 MM X 2000 MM (236'' X 69'' X 78.7'') |
5000 MM X 1750 MM X 1900 MM (197'' X 69'' X 75'') |
| Net Weight (Approx) | 2250 KGS. | 1750 KG |
| Gross Weight (Approx) | 2750 KGS. | 2250 KGS |
| Shipping Volume | 2750 KGS. | 6 M3 |
| Packing Case Outer Size (LxWxH) | 5100 MM X 1000 MM X 1595 MM (200'' X 40'' X 62'') |
4100 MM X 1000 MM X 1495 MM (161'' X 40'' X 58.8'') |
