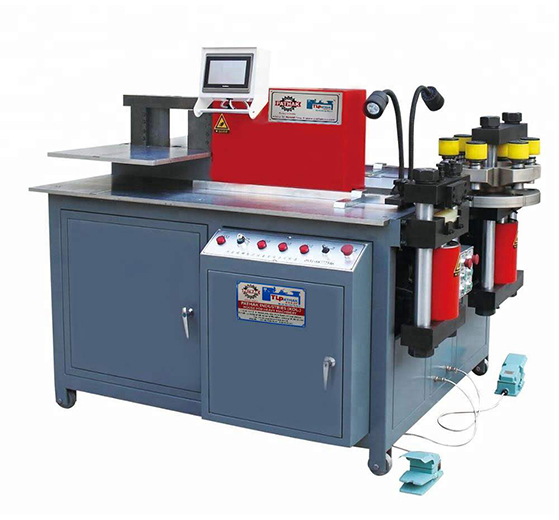

CNC Multipurpose Hydraulic Busbar Processing Machine

Name: CNC Multipurpose Hydraulic Busbar Processing Machine
Brand: TL Pathak
SKU: PCBB-303ESK
Price: 1555000 INR
Availability: InStock
Rating: 5 (5 reviews)

CNC Machines

We are the country's most popular and leading manufacturer and exporter of CNC multipurpose hydraulic busbar processing machines and provide our customers with great quality products at an affordable price. This machine has a maximum shearing thickness of 12 mm and a width of 160 mm and uses 3.4 kW of power. The machine has a CNC precision of +1.

From ₹

975,000 To 1,555,000

Download Catalog Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-9124009247 OR Call Me Back

Specifications

FUNCTION	MODEL	PCBB-303ESK	PBBM-303DM	PBBM-503DM
Punching	Max. punching force (kn)	300	300KN	500KN
	Punching diameter range (mm)	4.3-25	4.3-25mm	4.3-34mm
	Max.thickness(mm)	12	12mm	16mm
	Max.width(mm)	160	150mm	250mm
Shearing/Cutting	Max.shearing thickness (mm)	12	12mm	16mm
Shearing/Cutting	Max.shearing width(mm)	160	150mm	250mm
Vertical Bending	Max.bending force (kn)	300	300	300
	Max.width(mm)	160	150mm	250mm
	Max.thickness (mm)	12	12mm	16mm
Horizontal bending	Max.width(mm)	100	100mm	-
Horizontal bending	Min.angle (degree)	90	90	90
Out dimension	mm	178013801420
Power	kw	3x4kw	3.4 kw	3.5 kw
Weight	kg	1400kg
CNC precision	Bending precision	+1	+1	+1
CNC precision	Repeat bending precision	+0.3
