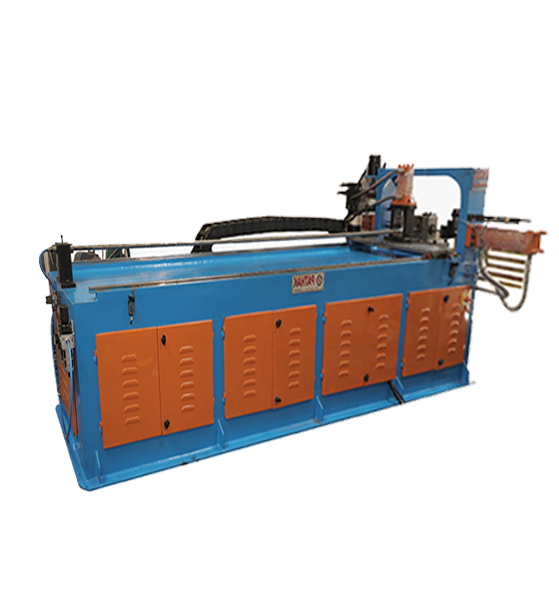

Double Ended Scaffolding Prop Punching Machine
Special Purpose Machines (SPM'S)The Double Ended Scaffolding Prop Punching Machine by TL Pathak Group is a versatile and efficient tool designed for the construction industry. With precision engineering, it facilitates the punching of holes in scaffolding props swiftly and accurately. This machine streamlines the process, ensuring uniformity and consistency in hole placement, thereby enhancing productivity on construction sites. Its dual-ended functionality allows for simultaneous punching on both ends of the scaffolding prop, saving time and effort. Equipped with robust construction and user-friendly features, it offers reliability and ease of operation. The machine's compact design makes it suitable for various job sites, optimizing space utilization. From small-scale projects to large-scale constructions, the Double Ended Scaffolding Prop Punching Machine proves to be an indispensable asset, meeting the demands of modern construction practices with efficiency and precision.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel Name | TLPDEPP |
Body | Mild Steel Fabricated with 8 mm and 20 mm plate |
Body Head | 50 mm plates |
Accuracy | +-0.10 mm |
Sensor | Yes |
Oil Pump | Hydraulic Pump |
Electric Motor | 7.5 H.P. Crompton Make |
Lubrication | Auto Lubrication |
Maximum Tube Length | 3000 mm (3 m.) |
Punching Capacity | 5x85 mm |
Hydraulic Tank | 150 lit. (Without Oil) |
Electric Panel | 1 Nos. |
Cycle Time | 3 sec per hole including feed |
Pipe Clamping | By Hydraulic Cylinder |
Gear Box | Planetory Gear Box (Delta) |
HMI | Fuji |
