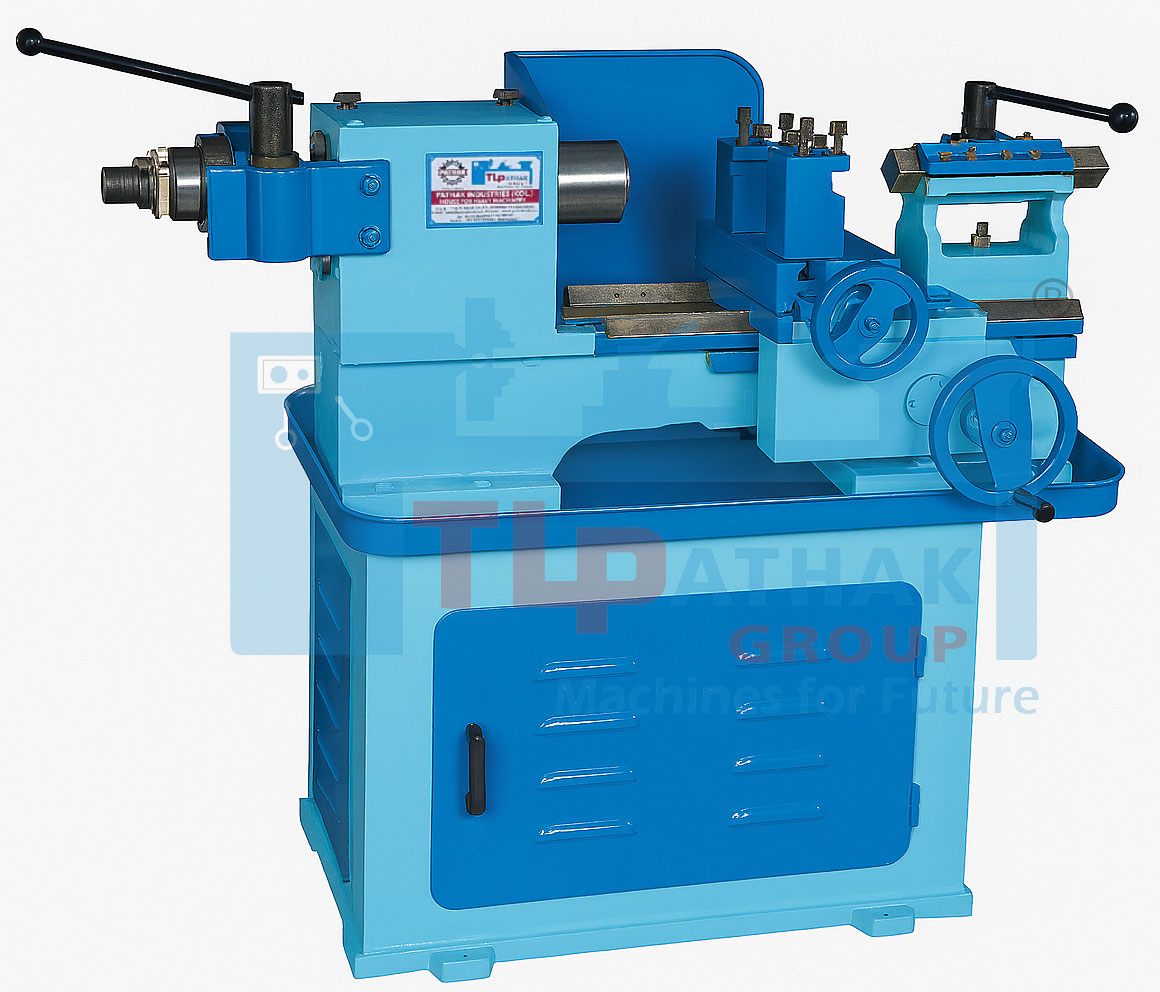

Manual Production Lathe Machine
Lathe MachinesRequest Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
Front & Rear Main Slides
Bar Stopper
One Set of Cam
One Silent Gravity Bar Feed Chest
Single Vertical Slide
Two Piece Parting Attachment
Four Piece parting Attachment
AC Drive
Additional Tool
Holder and Chemfering Attachment
| Model | Pal-25 MM | Pal-32 MM | Pal - 40 MM | Pal-50 MM | Pal-60 MM | Pal-70 MM |
| Max Capacity Round Bar | 22 mm | 30 mm | 37 mm | 47 mm | 56 mm | 65 mm |
| Hexagonal | 22 mm | 25 mm | 32 mm | 47 mm | 56 mm | 65 mm |
| Square | 18 mm | 24 mm | 27 mm | 36 mm | 42 mm | 45 mm |
| Maximum Turning Lenght | 40 mm | 45 mm | 50 mm | 60 mm | 70 mm | 76 mm |
| Maximum Drill | 40 mm | 50 mm | 55 nm | 60 mm | 65 mm | 70 mm |
| Electric Drive Motor | 2 HP | 3 HP | 3 HP | 5 HP | 5 HP | 7 HP |
| 1440 Rpm | 1440 RPM | 1440 RPM | 960 RPM | 960 RPM | 960 RPM |
We have developed mature leading technology in the world’s industry field for metalworking with an experience of many years. Our main culture and value are providing stability and reliability to our customers. Therefore, the spindle of our manual production lathe machines is 3 points supported by precision bearings to assure long-lasting cutting stability.
| Headstock Rigid construction with high-torque spindle, often with multiple gear speeds |
| Bed Hardened and ground bed for wear resistance and long service life |
| Carriage Assembly Includes cross-slide, saddle, compound rest, and tool post for tooling setup |
| Tailstock Adjustable for supporting long workpieces and performing drilling operations |
| Feed Mechanism Longitudinal and cross-feed with manual and automatic feed options |
| Thread Cutting Gearbox with thread dial indicator for metric and imperial threads |
| Chuck Options 3-jaw self-centering and 4-jaw independent chucks available |

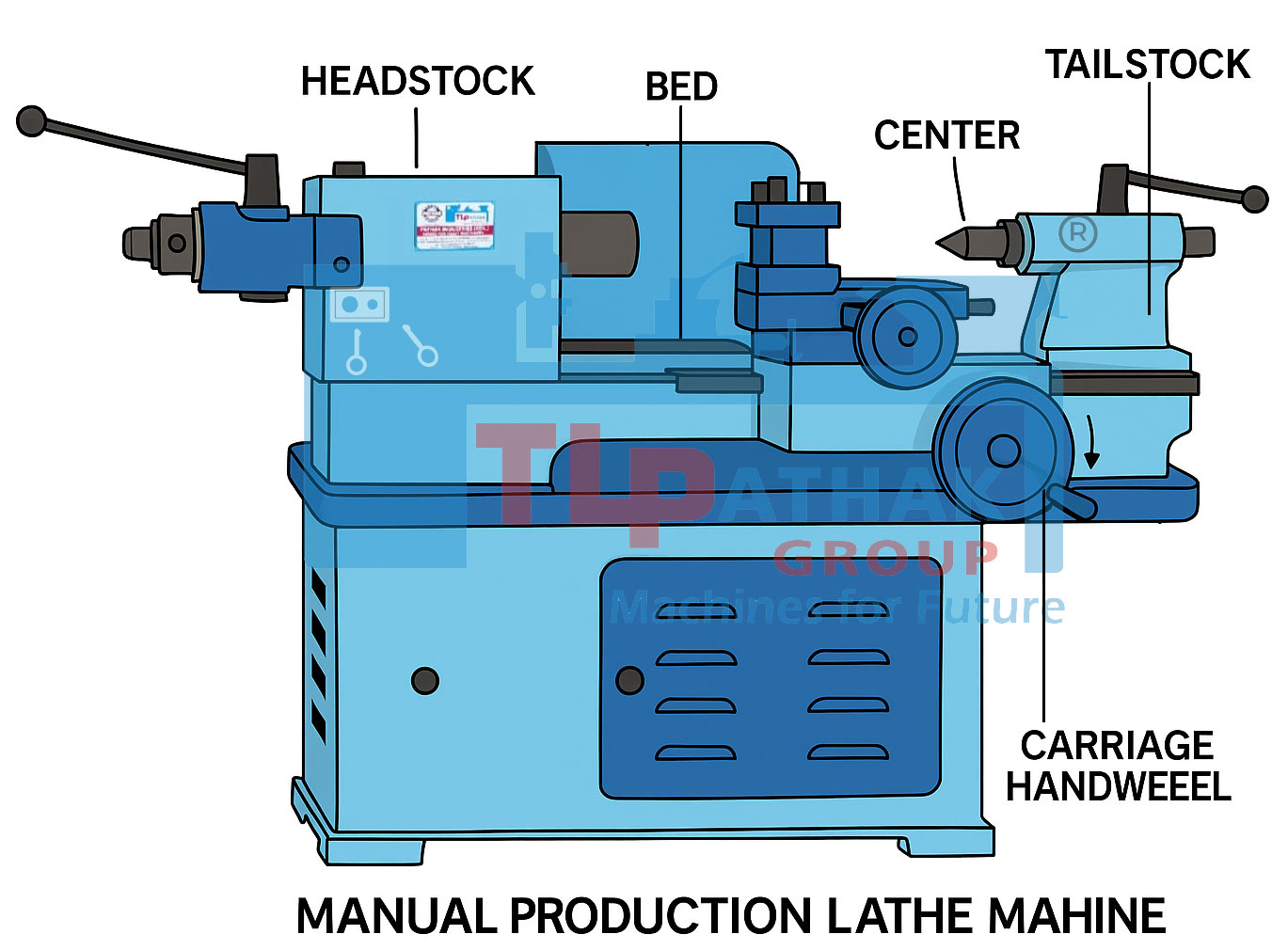

3D angled front view with all parts labeled for Manual Production Lathe Machine
Applications of Manual Production Lathe Machine
| Used in metalworking industries for turning, facing, and threading operations |
| Common in automobile part manufacturing (shafts, bolts, nuts, etc.) |
| Utilized in tool rooms for maintenance and repair jobs |
| Ideal for small batch production and custom part fabrication |
| Applied in prototyping and product development workshops |
| Employed in educational institutions for training purposes |
| Used in woodworking and plastic shaping, depending on tooling |
| Suitable for job shops handling multiple low-volume jobs |
Uses of Manual Production Lathe Machine
| Turning cylindrical surfaces |
| Facing ends of the workpiece |
| Drilling and boring operations |
| Internal and external threading |
| Grooving, knurling, and parting |
| Taper turning using compound slide |
| Polishing and surface finishing operations |
Country Oil
Ship Building
Power Plants
Rolling Mill
Tool Rooms
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Heavy Engineering
Precision turning of small parts
Making bushings, spacers, pins
Thread cutting and boring
DIY metalworking and model engineering
