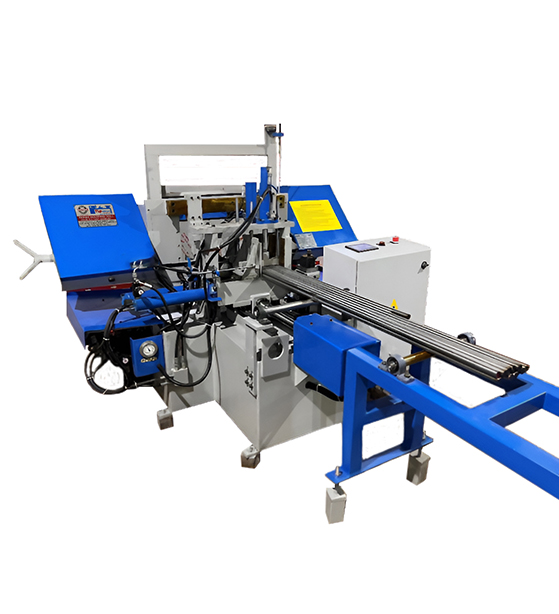

Double Column Full Automatic Bandsaw
Cutting MachinesThe TL Pathak Group introduces its Double Column Full Automatic Bandsaw Machine, a cutting-edge solution for precision metal cutting. This technologically advanced machine combines efficiency with automation, ensuring seamless operation in various industrial applications. The robust double-column design enhances stability and accuracy, providing a reliable platform for heavy-duty cutting tasks. Equipped with full automation features, including automatic feeding, cutting, and material positioning, it significantly enhances productivity while reducing manual intervention. The bandsaw machine boasts a user-friendly interface for easy control and monitoring. Its high-performance capabilities make it suitable for diverse materials, delivering consistent and precise results. TL Pathak Group's commitment to innovation and quality shines through in this Double Column Full Automatic Bandsaw Machine, meeting the demands of modern metalworking industries with cutting-edge efficiency and reliability.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel | TLPDCB-250 | TLPDCB-350 | TLPDCB-450 | TLPDCB-550 |
Cutting Capacity in Round | 250 mm | 350 mm | 450 mm | 550 mm |
Cutting Capacity in Square | 250x250 mm | 350x350 mm | 450x450 mm | 550x550 mm |
Blade Size | 4100x34x1.1 mm | 4100x34x1.1 mm | 5230x34x1.1 mm | 6300x41x1.1 mm |
Blade Speed | 20-70 mtr/min | 20-70 mtr/min | 20-70 mtr/min | 20-70 mtr/min |
Main Motor Power | 3.0 H.P. | 3.0 H.P. | 5.0 H.P. | 7.5 H.P. |
Hydraulic Motor Power | 1.5 H.P. | 1.5 H.P. | 2.0 H.P. | 2.0 H.P. |
Coolant Motor Power | 0.25 H.P. | 0.25 H.P. | 0.25 H.P. | 0.25 H.P. |
Working Height | 650 mm | 650 mm | 650 mm | 650 mm |
Machine Weight | 1100 kg | 1100 kg | 1400 kg | 1800 kg |
UP-Down Movement | On Twin Pillars mounted LM Rails,with two hydraulic cylinders,down feed precisely controlled by temperature & pressure compensated flow control value |
