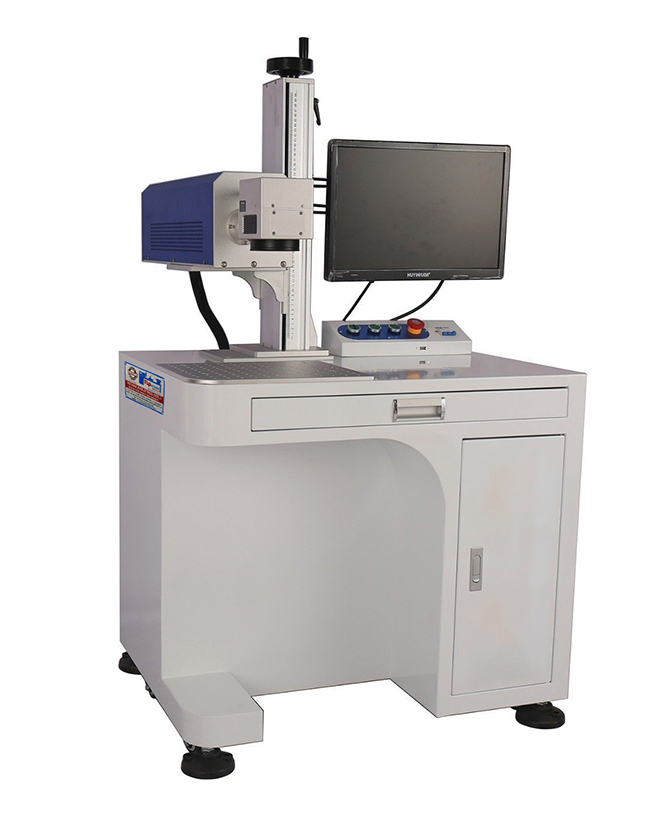

CO2 Laser Marking Machine
CNC Laser MachinesTL Pathak Group offers cutting-edge CO2 laser marking machines designed to meet the diverse marking needs of industries worldwide. Our CO2 laser marking machines utilize advanced CO2 laser technology to provide high-speed, precise, and permanent marking on a variety of materials including plastics, glass, ceramics, wood, and more equipped with state-of-the-art laser sources, our machines deliver superior marking quality with crisp, clear, and durable results. They are capable of marking intricate designs, serial numbers, barcodes, logos, and other identifiers with exceptional accuracy and consistency.
Our CO2 laser marking machines feature user-friendly interfaces and intuitive software, allowing for easy setup, operation, and customization of marking parameters. They are robust, reliable, and low-maintenance, ensuring uninterrupted performance in demanding industrial environments,whether you require marking for product branding, traceability, or identification purposes, TL Pathak Group's CO2 laser marking machines offer efficient and cost-effective solutions to meet your marking requirements with precision and reliability.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel Name | TLPCO2-10 | TLPCO2-30 | TLPCO2-60 |
The Maximum Laser Power | 10 W | 30 W | 60 W |
Laser Wavelength | 10.6 um | 10.6 um | 10.6 um |
Laser Frequency | <= 20 khz | <= 20 khz | <= 20 khz |
Engraving Depth | <= 2 mm | <= 3 mm | <= 5 mm |
Marking Range | 100x100 mm | 100x100 mm | 100x100 mm |
Marking Speed | <=7000 mm/s | <=7000 mm/s | <=7000 mm/s |
Minimum Character | 0.20 mm | 0.40 mm | 0.40 mm |
Minimum Line Width | 0.05 mm | 0.1 mm | 0.15 mm |
Coding Speed | <= 60 characters/s | <= 60 characters/s | <= 60 characters/s |
Line Speed | <= 120 m/min | <= 120 m/min | <= 120 m/min |
Repeatability Accuracy | 0.01 mm | 0.01 mm | 0.01 mm |
The Whole Power | 600 W | 800 W | 1000 W |
Electricity Requirement | 220 V/50 Hz | 220 V/50 Hz | 220 V/50 Hz |
