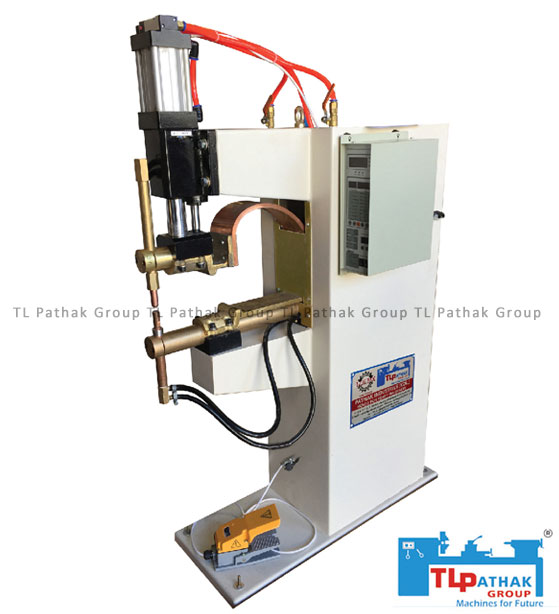

Pneumatic Spot Welding Machine
Welding EquipmentsWelding machines like Pneumatic spot welding machines are used in many types of industries and these are known for their compact size, sturdy construction, easy operation and energy-saving features. T.L Pathak Group Leading Manufacturer of Exporters of Pneumatic Spot Welding Machines ranges from ? 56,000 To 59,000.
From ₹
56,000
To
59,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| MODEL | PSW-15 | PSW20 | PSW30 |
| KVA | 15 | 20 | 30 |
| Input Supply (Volts) | 380 / 440 | 380 / 440 | 380 / 440 |
| Phase | 2 | 2 | 2 |
| Insulation Class | A | A | A |
| Nomination Throat Clearanse (MM) | 250 | 250 | 250 |
| Throat Depth (CM) | 50 | 50 | 50 |
| Max.Available short circuit current(k.Amps.) | 8500 | 1000 | 1200 |
| Max.Electrode Force @ 6 kg/cm2 | 450 | 450 | 450 |
| Max.Upper Electrode Stroke (MM) | 50 | 50 | 50 |
| Approx Dimensions in mm (H L W) | 840/410/1450 | 1100/500/1640 | 1100/500/1640 |
| Weight With arm (Approx kgs.) | 215 | 220 | 250 |
| Cooling for Arms & Electrodes | Water | Water | Water |
