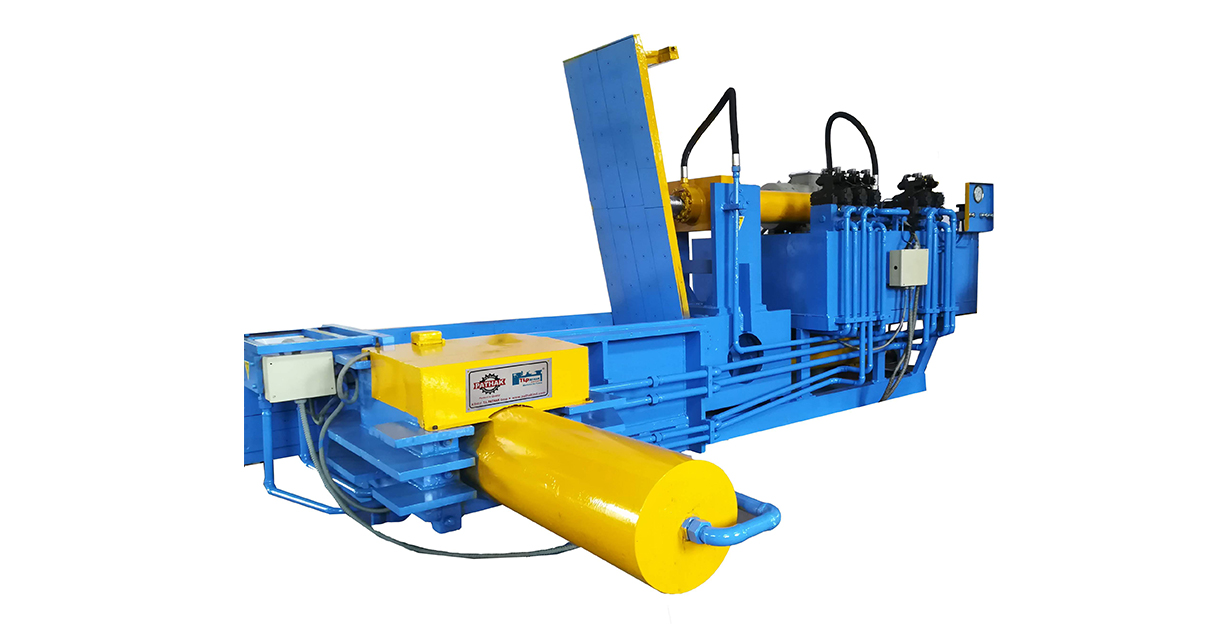

Triple Action Baling Press Machine
Scrap Baling MachinesTL Pathak Group in India introduces the Triple Action Baling Press Machine, a cutting-edge solution for efficient compaction and baling of various materials. This advanced machine operates with a unique triple-action hydraulic system, delivering exceptional compaction force and producing tightly compressed and uniform bales. With its rugged construction and intuitive controls, it ensures reliable and user-friendly operation. The Triple Action Baling Press Machine is equipped with safety features to safeguard operators and minimize the risk of accidents. It is well-suited for industries dealing with high volumes of waste, such as recycling facilities, plastic processing plants, and paper mills. This machine optimizes storage space, streamlines waste management processes, and boosts overall productivity and profitability.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | PHB 16 | PHB 20 | PHB 24 (TRIPLE ACTION JUMBO) |
| Baling Chamber | 25''X16''X52''(HXWXL) | 29'' X 20'' X 52''(HXWXL) | 28X25X58 H X W X L |
| Bale Size | 16'' X 16'' X (H X W X) | 20'' X 20'' X (H X W X) | - |
| Electric Motor | 15 H.P 3 PHASE 1440 RPM | 20 H.P 3 PHASE 1440 PM(Cromption Motor) |
30H.P 3PHASE 1440 RPM |
| Body | FABRICATED (45 + 12 MM) | FABRICATED (45 + 12 MM) | ABRICATED (50 + 12 MM) |
| Oil Drive | VAN PUMP SYSTEMS. | VAN PUMP SYSTEMS. | VAN PUMP SYSTEMS. |
| Working Liquid | HYDRO/ENCLO-68 (NOT IN OUR SCOPE) |
HYDRO/ENCLO-68(NOT IN OUR SCOPE) | Hydro/Enclo-68(Not in Our Scope) |
| No of Cylinder | 2 Nos./4Nos for auto eject | 2 Nos. / 4 Nos for auto eject | 5nos |
| Force on Lid | 40 Tons | 40 TONS | 50 TONS |
| Force on Main Cylinder | 80 Tons | 100 TONS | 120 TONS |
| Bale Ejection | By Cylinder | By Cylinder | By Cylinder |
| Door Lock | By MANUAL / HYD FOR AUTO MODEL | By MANUAL/HYD FOR AUTO MODEL |
Auto |
| Working Pressure | 3000 PSI | 3000 PSI | - |
| Hard Liner Plates | PROVIDED | PROVIDED | PROVIDED |
| Starter | OPTIONAL | PROVIDED | PROVIDED |
| Weight of the Bale | 25 TO 40 KG. | 70 KG. | - |
| Idle Cycle Time | 50-55 SECONDS | 50 -55 SECONDS | - |
| Oil Tank Capacity | 400 LTS. | 500 LTS | - |
| Opertion of the Machine | MANUAL THROUGH LEVERS |
MANUAL THROUGH LEVERS | - |
Scrap Billing Press Application 1
Scrap Billing Press Application 2
Scrap Billing Press Application 3
