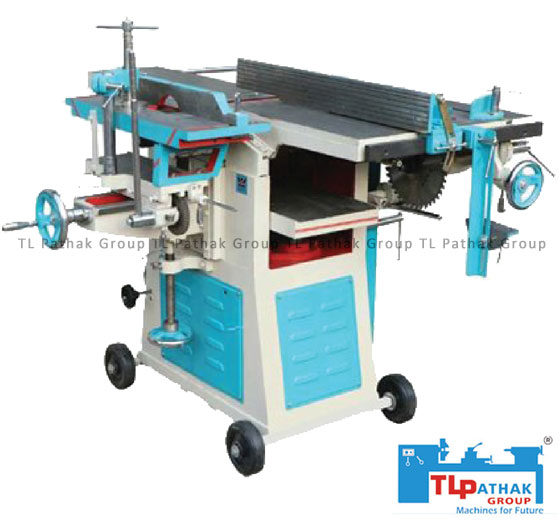

Multipurpose Wood Working Machine

Wood Working Machines

Pathak provides the best quality multipurpose woodworking machine mainly used in wood furniture industries like making wooden tables, chairs etc. The machine is available with us in a wide range and made with premium quality raw material and latest technology which ensures efficiency of the machine. It's straightforward to operate this machine and gives benefits of spidey work and smooth functioning to consumers.

From ₹
165,000

Download Catalog Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-9124009247 OR Call Me Back
MODEL PMW -1
Table Size 13'' x 56''
Gauge Width 13''
Gauge Height 9''
Side Cutter Capacity 12''
Side Cutter Capacity 3''
Tennoning Capacity 4''
Patami Table Size 25'' x 10''
Drilling Capacity 7'' Length
Motor reqd 3 HP 1440 RPM
No of Blades in main roller 4
Diameter of feed Rollers 40mm
Thickness feed Rate 8 meter / minute
Height of Machine 38''
Width of Machine 53''
Weight of Machine 550 kg excluding Motor

Moulding

Grooving

Sawing

Thicknessing

Drilling

Grinding

Rebating

Surfacing
