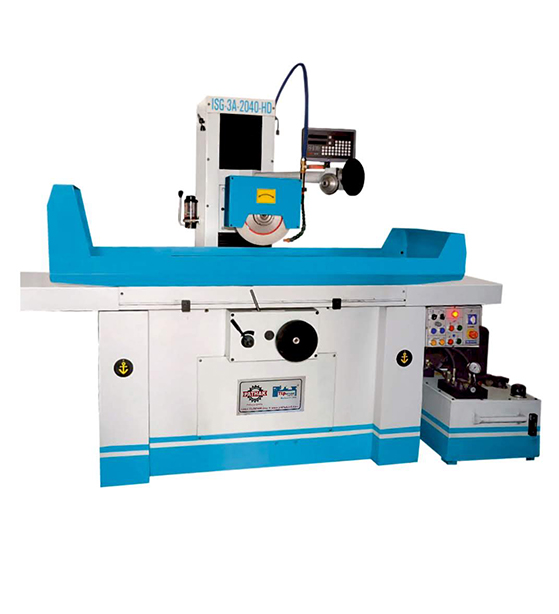

Hydraulic Surface Grinder
Grinding MachinesTL Pathak Group in India offers Hydraulic Surface Grinders that provide efficient and precise surface grinding solutions. These machines utilize hydraulic power for controlling the movement of the grinding wheel and workpiece, ensuring smooth and accurate operations. The hydraulic system allows for easy and precise adjustment of the grinding wheel's position, table movement, and vertical feed, enabling the operator to achieve the desired surface finish and dimensions. TL Pathak Group's Hydraulic Surface Grinders are equipped with high-quality components and robust construction for enhanced durability and reliability. They offer excellent stability, rigidity, and precision, making them suitable for a wide range of industrial applications. With advanced features and user-friendly controls, these hydraulic machines deliver superior grinding performance and consistent results.
From ₹
275,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
Magnetic Chuck
Precision Vice
Electromagnetic Chuck
Digital Readout
| Descriptions | Model | PISG-618 A, 1A, 2A, 3A, ED/HD | PISG-820 A, 1A,2A,3A, ED/HD | PISG-1024 A, 1A, 2A, 3A, ED/HD | PISG-1224 A, 1A, 2A 3A, ED/HD |
| Table size | 150x450mm. (6"x18") | 200x500mm (8" 20") | 200x500mm (10" x 24") | 300 x 600 mm (12" x 24") | |
| Max. grinding length | Longitudinal | 475mm (19") | 525mm (21") | 625mm (25') | 625mm (25") |
| Max. grinding Width | Crosswise | 160m (6 1/4) | 212mm (81/2") | 212mm (101/2") | 312mm (12 1/2") |
| Max. Distance from table surface to spindle centerline | 250mm (10") | 400mm (16") | 450 mm (18") | ||
| Standard Magnetic Chuck Size | 160x350mm (6"x14") | ||||
| Longitidinal Movement of table | Hand wheel per rev. | 100mm (4") | |||
| Table speed elect. autofeed | |||||
| Max travel hydraulic | 475mm (19") | 525 mm (21") | 625mm (25") | 625mm (31") | |
| Table speed infinitely variable hydraulc | 50HZ, 5-25 m/min, 60HZ, 5-25 m/min | ||||
| Cross transverse travel | Max. auto transverse travel | 160m (61/4") | 212mm (8 1/4) | 262mm (10 1/2") | 312mm (12 1/2") |
| Handwheel per revolution | 5mm (0.2") | ||||
| Handwheel per graduation | 0.05mm (0.0012 1/2") | ||||
| Auto transverse increment | 1-10mm (0.04"-0.4") | ||||
| Wheelhead Vertical | Handwheel per revolution | 1mm (0.05") | |||
| Handwhee; per gradulution | 0.01 | ||||
| Griding spindle drive | Power rating | 1. H.P | 2 H.P | ||
| Speed | 50 HZ, 2850 RPM., 60HZ, 3450 R.P.M | ||||
| Standard grinding wheel | Diamter | 178mm (7") | 203mm (8") | ||
| Width | 12 mm (1/2") | 19mm (3/4") | |||
| Bore | |||||
| Hydraulic motor | Power rating | 1HP X 6P | 2HP X 6P | ||
| Longitidinal feed motor | Power rating | 1HP X 6P | 1HP X 6P | 2HP X 6P | |
| Floor space | Length x width x height total space require | 1370 x 1020 x 1845 mm (54"x40"x73") | 2030x1370x1630 mm (80" x 54" x 64") | 2450 x 1500 x 1630mm (96" x 61' x 64") | 2500 x 1680 x 2500mm (98"x66"x98") |
| Packing dimesnsions | LxWxH | 1270 x 920 x 1820 mm (50" x 36" x 72") | 1680 x 1270 x 1650 mm (66"x50'x65") | 1780 x 1320 x 1650 mm (70'x52'x65") | 1780 x 1440 x 1700 mm (70" x 56" x 67") |
